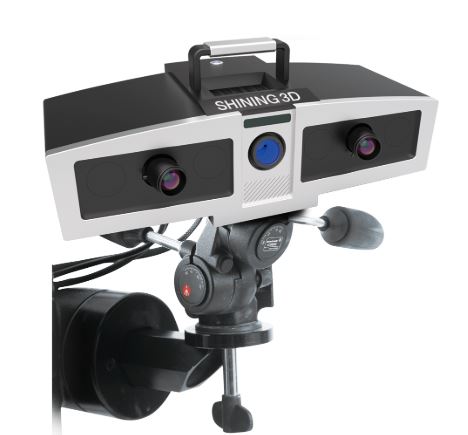

Shining3D OptimScan-5M Metrology 3D Scanner
Manufacturer: SHINING 3D Model: OptimScan-5M Origin: China Guarantee: 12 Month - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Single Shot Accuracy: 0.005-0.015 mm
Volume Accuracy: 0.08 mm/m
Single Scan Speed: < 1.5 s
Point Distance: 0.04-0.16 mm
Single Scan Range: 100x 75 mm /200×150 mm / 400×300 mm
Scan Depth: 100-400 mm
Camera Resolution: 5.0 MPx2
Light Source: Blue light ( LED )
Scan Type: Non-contact structure light scanning
Alignment: Reference points auto-alignment / manual alignment
Output Data Format: STL, ASC, DGM, OBJ, etc., and compatible with the mainstream 3D software
PC Configuration Requirement: CPU: Intel core i7 3770 or better; Display card: NVIDIA GeForce GT 670 or better; Memory : 8G DDR3 1600 or better
OS System Support: win10 64bit
Operation Temperature: 0 - 45 °C
