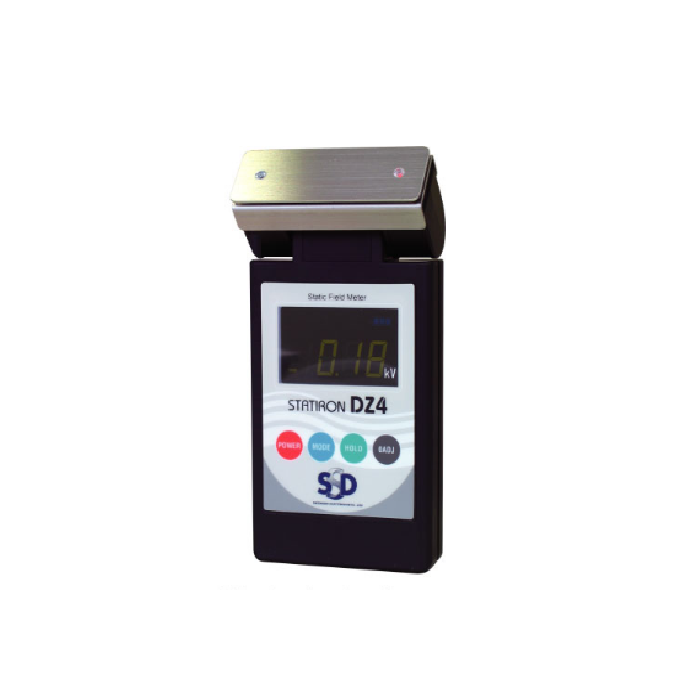

Shishido DZ4 Static ELectricity Measuring Instrument (0.01~19.99 kV)
Manufacturer: Shishido Model: DZ4 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Signal detection method: Oscillating chopper *1
Frequency of data indication: Each 0.5 second
Measurement range:
Normal mode: 0.01~19.99 kV
I.B mode: 0.001~1.999 kV
Measurement accuracy: ±10%rdg ± 2 digit
Measurement distance: 30 mm (between measurement object and sensor)
Measurement distance adjust: Red Light focusing system
Angle of the rotary sensor head: 180 degree (hold each 45 degree)
Indicator: LED indicator with back light
Polarity display: Both positive and negative polarity
Mode select: With MODE select button
Battery check: Indicate in LED indicator
Power supply: DC 9V alkaline battery 006P
Operating Environment: 0 to 40℃; From 70% or less with no condensation
Main unit dimensions: 66×22×138 mm (W×H×D)
Weight: 160 g
Accessories: 9V battery, soft storage case, Grounding Cable,Strap
