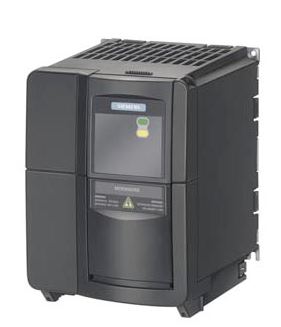

SIEMENS 6SE6420-2UD22-2BA1 MICROMASTER 420 Inverters
Manufacturer: SIEMENS Model: 6SE6420-2UD22-2BA1 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Inverter power: 2.2 KW.
Power supply: 3 phase 380-480V, 45-63Hz.
The frequency range: 0.1 - 650 Hz.
3 programmable digital inputs.
An analog input.
An analog output: 0 - 20mA.
No built-in EMC filter.
Dimensions H x W x D: 202 x 149 x 172.
Output relay: 1.
Method of control: V / f; squared V / f;
multi-point V / f control information flow from FCC.
Overload capability: 150% 60.
Serial communication ports: RS-485, operating with the USS protocol.
Protection: Low voltage, over voltage, overload, earth fault, short circuit, over temperature ...
Communication: Profibus, Device Net, CANopen.
IP 20.
