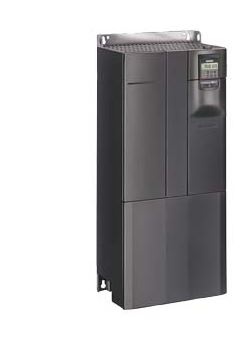

Siemens 6SE6430-2UD38-8FA0 Micromaster 430 Inverter, 380V-90KW
Manufacturer: SIEMENS Model: 6SE6430-2UD38-8FA0 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Applications: Pumps, fans, load torque change
Inverter power: 90 KW.
Power supply: 3 phase 380-480V, 45-63Hz.
The frequency range: 0.1 - 650 Hz.
6 programmable digital inputs.
2 analog inputs.
2 analog outputs: 0 - 20mA.
No built-in EMC filter.
Dimensions H x W x D: 850 x 350 x 320.
Output relay: 3.
Method of control: V / f; squared V / f;
multi-point V / f control information flow from FCC.
Overload capability: 110% 60s, 140% 3s.
Serial communication ports: RS-485, operating with the USS protocol.
Protection: Low voltage, over voltage, overload, earth fault, short circuit, over temperature ...
Communication: Profibus, Device Net, CANopen.
IP 20.
