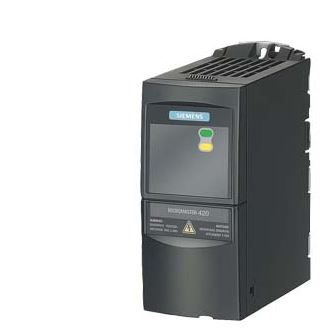

Siemens 6SE6440-2UC15-5AA1 Micromaster 440 Inverter, 1/3P 220-240 VAC, 0.55 kW
Manufacturer: SIEMENS Model: 6SE6440-2UC15-5AA1 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Inverter power: 0.55 KW.
Power supply: 1 or 3 phase 200-240V, 45-63Hz.
The frequency range: 0.1 - 650 Hz.
6 programmable digital inputs.
2 analog inputs.
2 analog outputs: 12:25 - 20mA.
Dimensions H x W x D: 173 x 73 x 149.
Output relay: 3.
Method of control: V / f; Vector, Moment;
control information flow from the FCC.
Overload capability: 150% 60s, 200% 3s.
Serial communication ports: RS-485, operating with the USS protocol.
No built-in EMC filter.
Protection: Low voltage, over voltage, overload, earth fault, short circuit, over temperature ...
IP 20.
