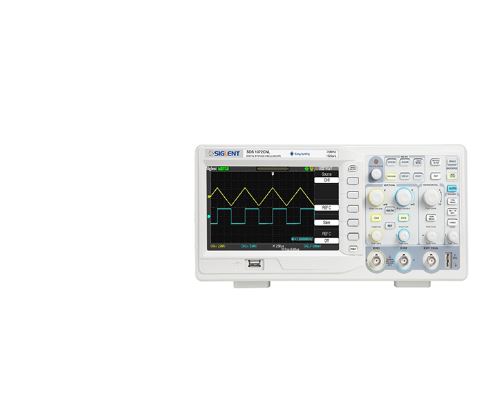

Siglent SDS1102CNL Digital Oscilloscope (100Mhz, 2Ch, 1GSa/s)

Model		SDS1102CNL
Bandwidth		100MHz
Channels	2CH+1EXT
Real time sampling rate	1GSa/s
Equivalent sampling rate	50GSa/s
Memory depth	40kpts
Rise time	<	< 3.5ns
Input impedance	1MΩ‖17pF
Time base range		2.5ns/div-50s/div
	Scan: 100ms-50s/div
Vertical sensitivity	2mV-10V/div
Vertical resolution	8bit
Trigger source	CH1, CH2, Ext, Ext/5, AC Line
Trigger types	Edge, Pulse, Video, Slope, Alternative
Math Operation	+, -, ×, ÷, FFT
Digital filter	High pass, Low pass, Band pass, Band Stop
Max input voltage	±400V(DC+AC Pk-Pk), CAT I, CAT II
Internal storage	2 groups of reference waveform, 20 groups of settings, 10 groups of waveforms		2 groups of reference waveform, 20 groups of settings, 20 groups of waveforms
External storage	Bitmap save, CSV save, Waveform save, Setting save
Language	English, French, German, Russian, Spanish, Simplified Chinese, TraditionalChinese, Portuguese, Japanese, Korean, Italian, Arabic
Interface	USB Host, USB Device, RS-232, Pass/Fail out
Display	7 inches(178mm) color TFT(480*234) LCD
Power	AC 100-240V, 45Hz-440Hz, 50VA Max
PC software	Can through the computer remote control oscilloscope, extraction waveform analysis data
Remark	With original source seamless connection, form signal collection, produce integration system
Detailed performance parameters and technical index please refer to《SDS1000CNL Series Datasheet》

Optional Accessories:

1. BNC Coaxial cable
2. RS-232 Serial line
3. USB-GPIB
4. EasyDsoLib Software setups (free)
5. Oscilloscope portable bag
