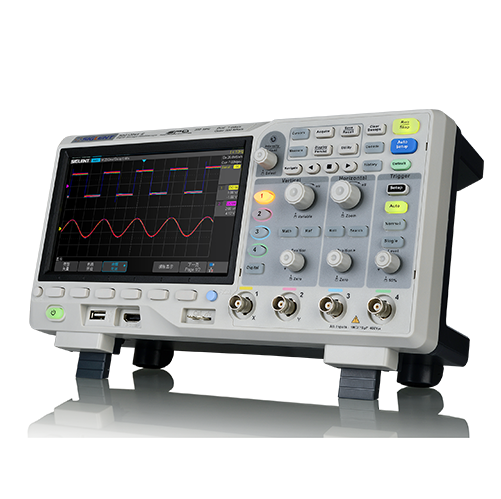

SIGLENT SDS1204X-E Super Phosphor Oscilloscope (200MHz; 4CH; 1GSa/s)

Bandwidth: 200MHz

Sample rate (Max.): 1GSa/s

Waveform capture rate (Max.): 100.000wfm/s (normal mode), 400.000wfm/s (sequence mode)

Channels: 4CH

Memory depth (Max.): 7Mpts/CH (not interleave mode); 14Mpts/CH (interleave mode)

Waveform capture rate (Max.): 110.000wfm/s (normal mode), 400.000wfm/s (sequence mode)

Trigger type: Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video

Serial trigger and decoder (Standard): I2C, SPI, UART, CAN, LIN

16 Digital channels (option): Maximum waveform capture rate up to 1GSa/s, Record length up to 14 Mpts/CH

I/O: USB Host, USB Device, LAN, Pass/Fail, Trigger Out, Sbus(Siglent MSO)

Probe (standard): 4/2pcs passive probe PP215

Display: 7 inch TFT–LCD (800x480 pixels)

Weight: 2.6kg

Standard accessories

USB cable: 1

Quick Start: 1

Passive probe: 4/2

Certification: 1

Power cord: 1

Optional accessories

16 Channels MSO Software: SDS1000X-E-16LA

16 Channels Logic Analyzer: SLA1016

AWG Software: SDS1000X-E-FG

USB Isolated AWG Module Hardware: SAG1021I

WIFI Software: SDS1000X-E-WIFI

USB WIFI Adapter: TL_WN725N

Isolated Front End: ISFE

STB Demo Source: STB-3

High voltage probe: HPB4010

Current probes: CP4020/CP4050/CP4070/CP4070A/CP5030/CP5030A/CP5150/CP5500

Differential probes: DPB4080/DPB5150/DPB5150A/DPB5700/DPB5700A

Rack Mount: SDS1X-E-RMK
