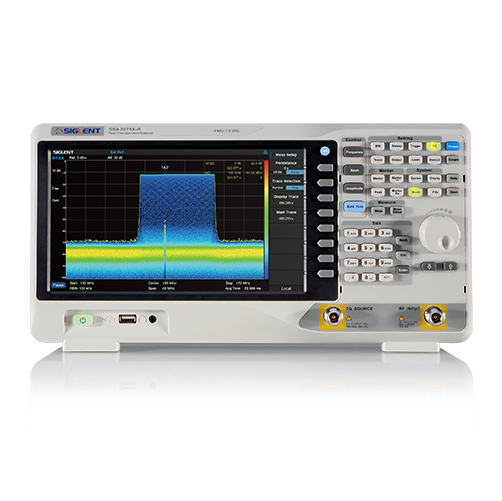

SIGLENT SSA3075X-R Real-time Spectrum Analyzer (9kHz~7.5GHz)

Frequency range: 9kHz~7.5GHz

Resolution bandwidth: 1Hz~3MHz

Displayed average noise level: -165dBm/Hz

SSB phase noise: <-98 dBc/Hz

Total amplitude accuracy: <0.7dB

Tracking generator: 100kHz-3.2GHz

Real-time bandwidth: 25MHz, 40MHz (Option)

RTSA SFDR: 60dB

RTSA Measurement: Density, Spectrogram, 3D, PvT

VNA measurement: Vector S11, Vector S21

VNA dynamic range: 90dB

Touch screen: Multi Touch, Mouse and Keyboard supported

Advanced measurement: CHP, ACPR, OBW, CNR, Harmonic, TOI, Monitor

Communication interface: LAN, USB Device, USB Host (USB-GPIB)

Standard accessories:

Quick Start

USB cable

Power cord

Optional accessories

Advanced Measurement Kit: SSA3000XR-AMK

Utility Kit: UKitSSA3X

N(M)-SMA(M) cable(6 GHz), N(M)-N(M) cable(6 GHz),

N(M)-BNC(F) adaptor x2, N(M)-SMA(F) adaptor x2,

10 dB 1W attenuator

N(M)-SMA(M) cable, 70cm, 6GHz: N-SMA-6L

N(M)-N(M) cable, 70cm, 6GHz: N-N-6L

N(M)-BNC(M) cable, 70cm, 2GHz: N-BNC-2L

N(M)-SMA(M) cable, 100cm, 18GHz: N-SMA-18L

N(M)-N(M) cable, 100cm, 18GHz: N-N-18L

USB-GPIB Adaptor: USB-GPIB

Soft carrying bag: BAG-S2

6U Rack Mount Kit: SSA-RMK
