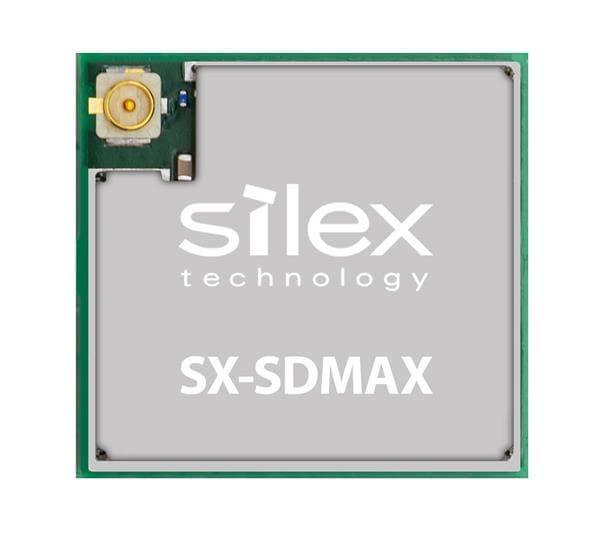

Silex Technology SX-SDMAX-2530S Dual-Band Wi-Fi 6 Plus Bluetooth Combo SDIO Module 2.4 GHz/5 GHz dual-band Wi-Fi 6 plus Bluetooth v5.3 BR/EDR/LE SDIO 3.0 module
Manufacturer: Silex Technology Model: SX-SDMAX-2530S - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Data Rate: 600 Mb/s
Frequency: 2.4 GHz, 5 GHz
Dimensions: 17 mm x 18 mm x 2.65 mm
Interface Type: UART
Mounting Style: SMD/SMT
Moisture Sensitive: Yes
Supply Voltage - Max: 3.3 V
Supply Voltage - Min: 1.8 V
Antenna Connector Type: MHF
Operating Supply Voltage: 1.8 V, 3.3 V
Protocol - WiFi - 802.11: 802.11 a/b/g/n/ac/ax
Supply Current Receiving: 10 mA
Supply Current Transmitting: 200 mA
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth 5.3
