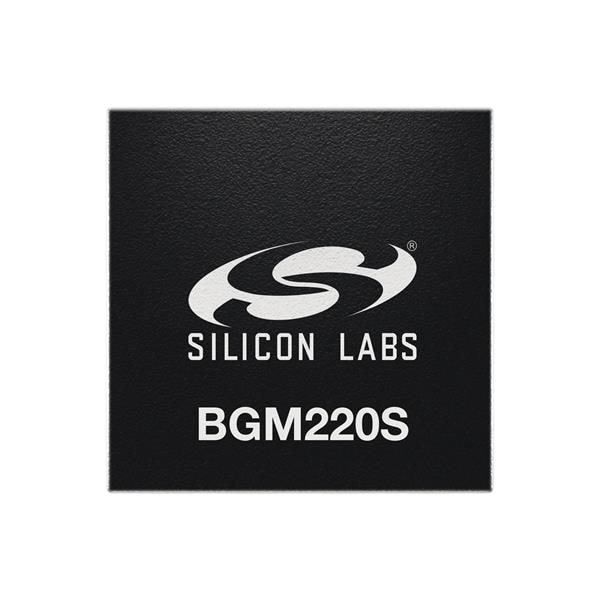

Silicon Labs BGM220SC12WGA2R Bluetooth Modules Wireless bluetooth SiP module, Secure Boot w/Root of Trust and Secure Loader(RTSL), 38.4 MHz, 6 dBm, PLFRCO, 352kB, 32kB(RAM), Built-in antenna/RF pin, 24 GPIO, 85C
Manufacturer: Silicon Labs Model: BGM220SC12WGA2R - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Core: ARM Cortex M33
Width: 6 mm
Height: 1.1 mm
Length: 6 mm
Antenna: Integrated
Protocol: BLE, Bluetooth 5.2
Data Rate: 2 Mb/s
Frequency: 2.44 GHz
Shielding: Unshielded
Dimensions: 6 mm x 6 mm x 1.1 mm
Memory Size: 32 kB, 352 kB
Sensitivity: - 95.9 dBm
Output Power: 0 dBm
Interface Type: I2C, SPI, UART
Mounting Style: SMD/SMT
Frequency Range: 2.4 GHz to 2.4835 GHz
Moisture Sensitive: Yes
Receiver Sensitivity: - 95.9 dBm
Supply Voltage - Max: 3.8 V
Supply Voltage - Min: 1.8 V
Antenna Connector Type: Chip
Operating Supply Voltage: 1.8 V to 3.8 V
Supply Current Receiving: 4.2 mA
Supply Current Transmitting: 4.6 mA
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
