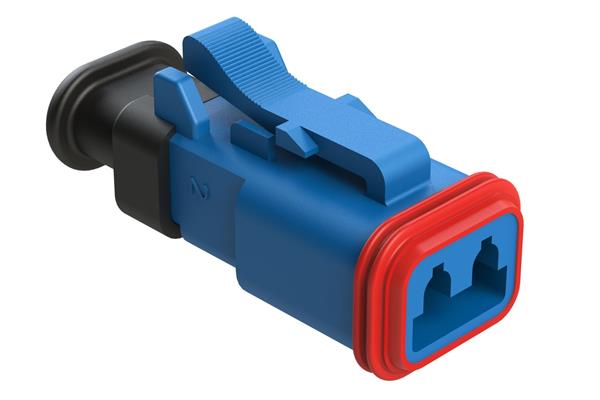

Amphenol SINE Systems AT06-2S-SR02BLU Plug 2 Position, Plug, Socket, SR02 Strain Relief (Reduced Diameter Seal), Blue Body
Manufacturer: Amphenol SINE Systems Model: AT06-2S-SR02BLU - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Color: Blue
Width: 15.1 mm
Gender: Socket (Female)
Height: 15.8 mm
Length: 40.4 mm
Contact Type: Socket (Female)
Contact Gender: Socket (Female)
Current Rating: 13 A
Mounting Angle: Straight
Mounting Style: Cable Mount / Free Hanging
Wire Gauge Max: 14 AWG
Wire Gauge Min: 20 AWG
Housing Material: Thermoplastic (TP)
Wire Gauge Range: 14 AWG to 20 AWG
Termination Style: Crimp
Ingress Protection: IP68, IP69K
Number of Positions: 2 Position
Insulation Resistance: 1 GOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
