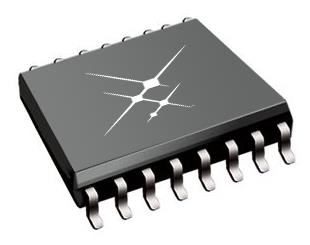

Skyworks Solutions Inc. SI8661BD-B-IS2 General Purpose 5 kV 5 forward & 1 reverse 6-channel isolator
Manufacturer: Skyworks Solutions Inc. Model: SI8661BD-B-IS2 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Polarity: Unidirectional
Shutdown: Shutdown
Data Rate: 150 Mb/s
Pulse Width: 5 ns
Unit Weight: 500 mg
Qualification: AEC-Q100
Isolation Type: Capacitive Coupling
Mounting Style: SMD/SMT
Development Kit: si86xxiso-kit
Forward Channels: 5 Channel
Reverse Channels: 1 Channel
Isolation Voltage: 5000 Vrms
Maximum Fall Time: 4 ns
Maximum Rise Time: 4 ns
Moisture Sensitive: Yes
Number of Channels: 6 Channel
Protocol Supported: General Purpose
Supply Voltage - Max: 5.5 V
Supply Voltage - Min: 2.375 V
Pd - Power Dissipation: 415 mW
Propagation Delay Time: 8 ns
Pulse Width Distortion: 4.5 ns
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
