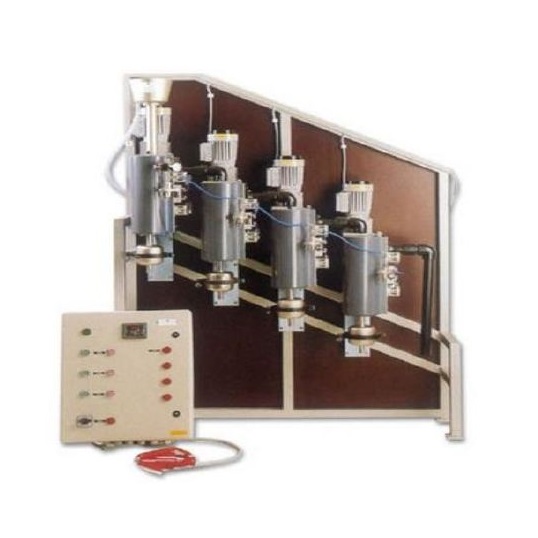

SKZ Industrial SKZ1024 Bauer Fiber Classifier (10L, Φ100)
Manufacturer: SKZ Industrial Model: SKZ1024 Origin: China - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Sieve grading number: 4 .
Sieve differentiator capacity:10L.
Agitator speed: 580 ± 50 rev / min, adjustable speed max 1400r / m
Sieve mesh:14mesh, 28mesh, 48mesh, 100mesh
Flow velocity: 11 ± 0.5L / min
Screening of time:0~9999min(According to the experiment adopted standard adjustment).
Main material: Stainless steel (0Cr18Ni9)
Outer dimentsions:1780mm(long)×520mm(width)×1680mm(high).
Instrument weight:130Kg.
Source: continuous water .
Commonly Used Strainer:
Long Fiber:10mesh,14mesh,28mesh,48mesh.
Middle Fiber(Leaving the Plant Mesh):14mesh,28mesh,48mesh,100mesh.
Short Fiber:28mesh,48mesh,100mesh,150(200)mesh
