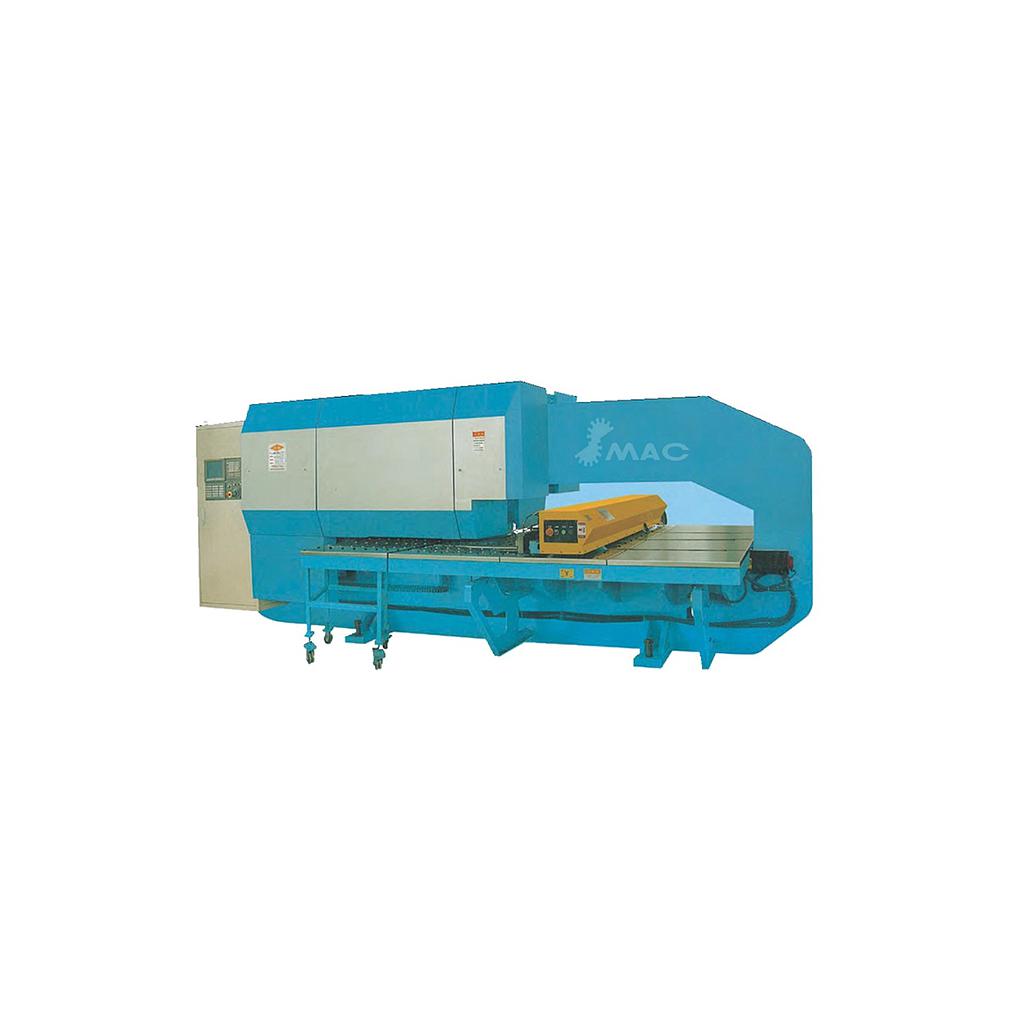

SMAC HPM-300/8 CNC Turret Punch Machine (8 Station)
Manufacturer: SMAC Model: HPM-300/8 Guarantee: 12 Month - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Punch force (KN): 300
Table size (mm): 1250x2500
Table loading (kgs): 150
Max punching thickness (mm): 6.35
Punching stroke length (mm): 32
Stroke per min (spm): 360
Max punching diameter (mm): 88.9
No of tool station: 8
Punching accuracy (mm): ±0.10
X,Y travel speed (m/min): 50
CNC control axis: X,Y,T,C
Air pressure (MPa): 0.5~0.6
Motor power (kW): 20
Overall size (mm): 5140x3200x2170
Weight (T): 15
