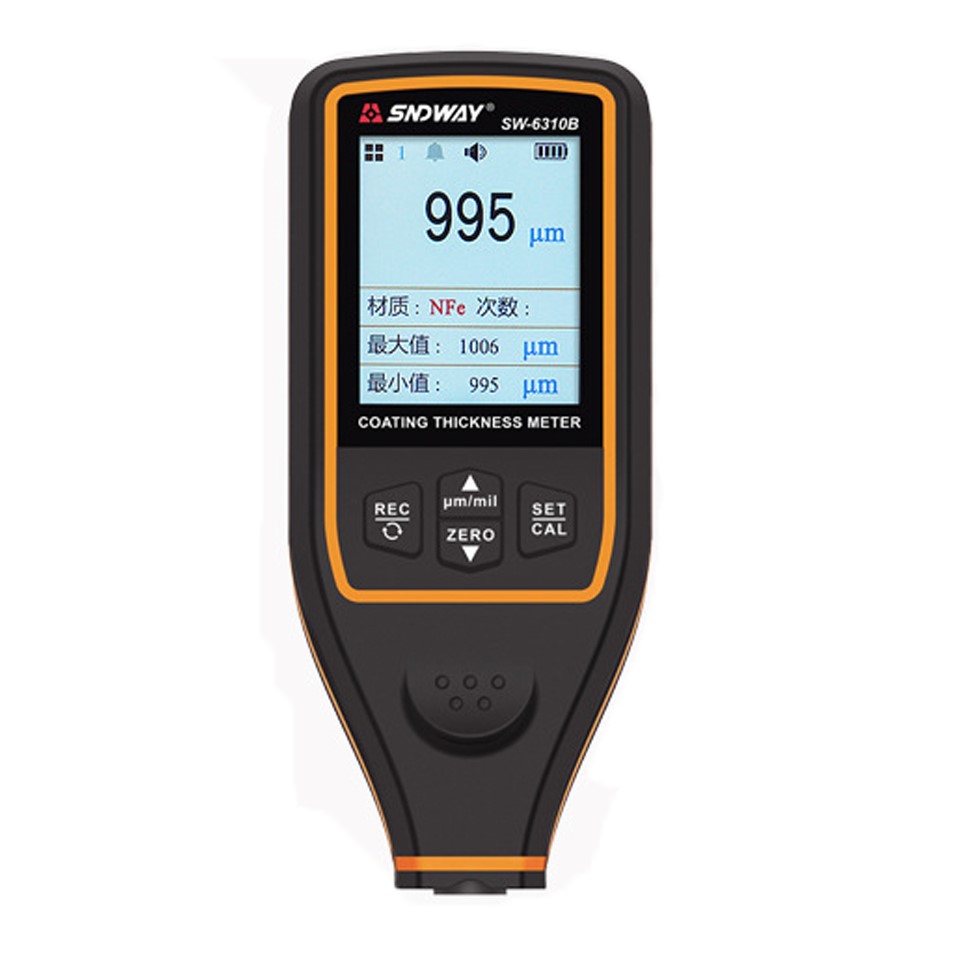

SNDWAY SW-6310B Coating Thickness Meter
Manufacturer: SNDWAY Model: SW-6310B - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Display Screen: 2.0" 240x320 TFT LCD
Measuring Range: Magnetic: 0-1700µm ; Non magnetic: 0-1700µm
Resolution: 0.1µm @ (0-99.9µm); 1µm @ (100-1700µm)
Indication Error: ±(2+2%*H)µm @ (0-500µm); ±(2.5%*H)µm @ (500-1700µm)
MIN. Measuring Area: Magnetic: 25x25mm; Non magnetic: 25x25mm
MIN. Curvature: Convexity: Smm; Concavity: 30mm
MIN. Thickness of Substrate: Magnetc: 0.2mm ; Non magnetic: 0.05mm
Memory: 8 Sets*32 Units
Voice Broadcast: V (only in chinese)
Data Export: Connecting Computer With Usb Cable
Power Supply: 3.7V 850mAh Li-ion
Charging Specification: DC 5V/1A Micro USB interface
Working Temperature & Humidity:0°C-50°C, 10%-80%RH
Storage Temperature & Humidity:-10°C- 50°C, 10% - 70%RH
Dimension:120x52x26mm
