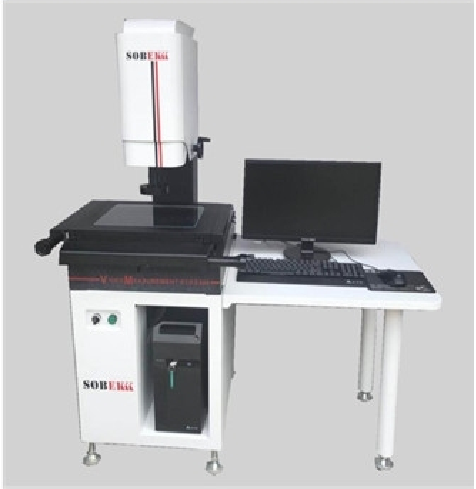

Sobekk E400 Manual Video Measuring Machine
Manufacturer: Sobekk Model: E400 Origin: China Guarantee: 12 Month - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Measuring range(mm): 400*300*200
Machine size(mm): 900*1400*1500
Weight（kg）: 400
Max. load（kg）: 25
Accuracy of X-Y axis: 3+L/200µm
Accuracy of Z axis: 5+L/200µm
XYZ resolution: 1.0μm
Repeatability（mm）: 0.003
Linear encoder: glass linear scale
Camera type: SBK-HC536 1/3 inches 600 lines industrial color camera
Liner guide: Z axis: Taiwan “HIWIN” P grade linear guideway; XY use "V" type linear guideway
Optics: 6:5:1 continual zoom step lens
Magnification: optics zoom ratio: 0.7-4.5X; image zoom ratio: 24-158X
Software: SBK-E manual 2.5D measure software
Control system: SBK3000 control box, USB port, adjustable light
Profile illumination: LED cold lighting,256 level programmable brightness adjustment
Surface illumination: LED cold lighting with segmented independent control & 256 level programmable brightness adjustment
Operated mode: handle wheel
Option device: Renishaw MCP probe, 0.5X, 2X extend lens
