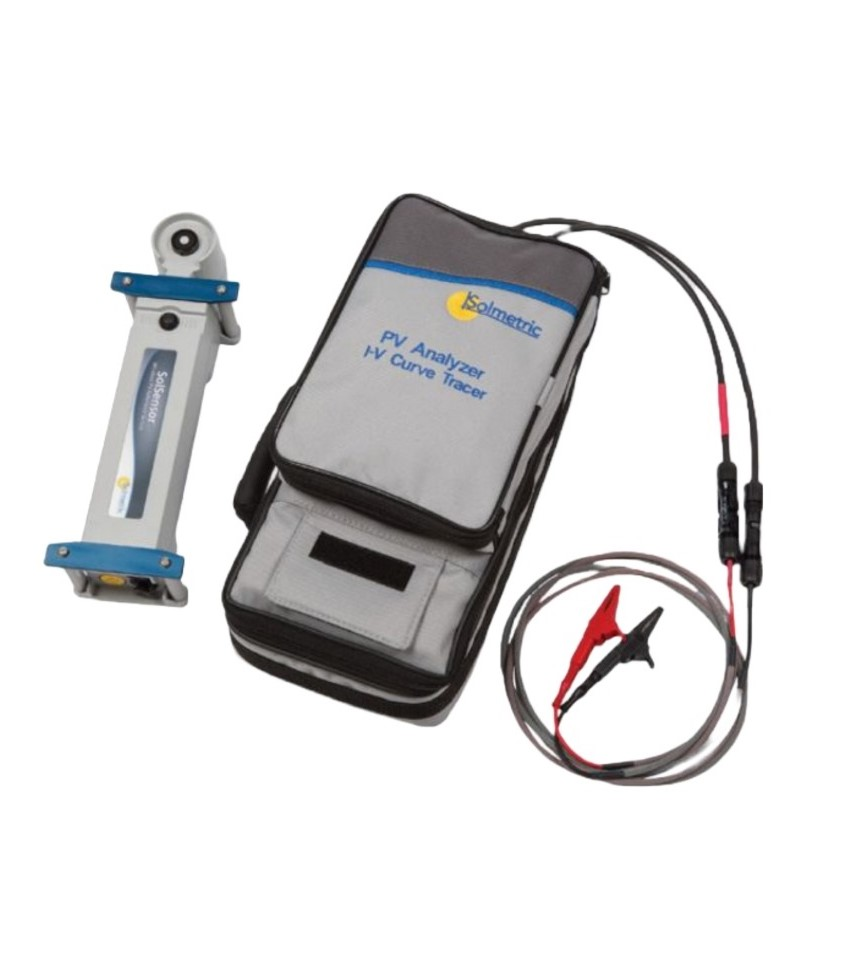

Solmetric PVA-1500T PV Analyzer Kit (20-1500 V DC, 0-30A DC)
Manufacturer: Solmetric Model: PVA-1500T - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
PV voltage: 20-1500 V DC
PV current: 0-30A DC (high efficiency modules ≥ 19% efficiency limited to 10A DC)
Measurement sweep time: <250 ms
Voltage accuracy (0 to 55 C): +/-0.5% +/-0.25V
Current accuracy (0 to 55 C): +/-0.5% +/-40ma
I-V trace points: 100, 500
Wireless sensor range: >300 ft
Operating ambient temperature: 0 to 45°C (32 to 113°F)
Options
Transit case
Field charging kit
Megger insulation tester
