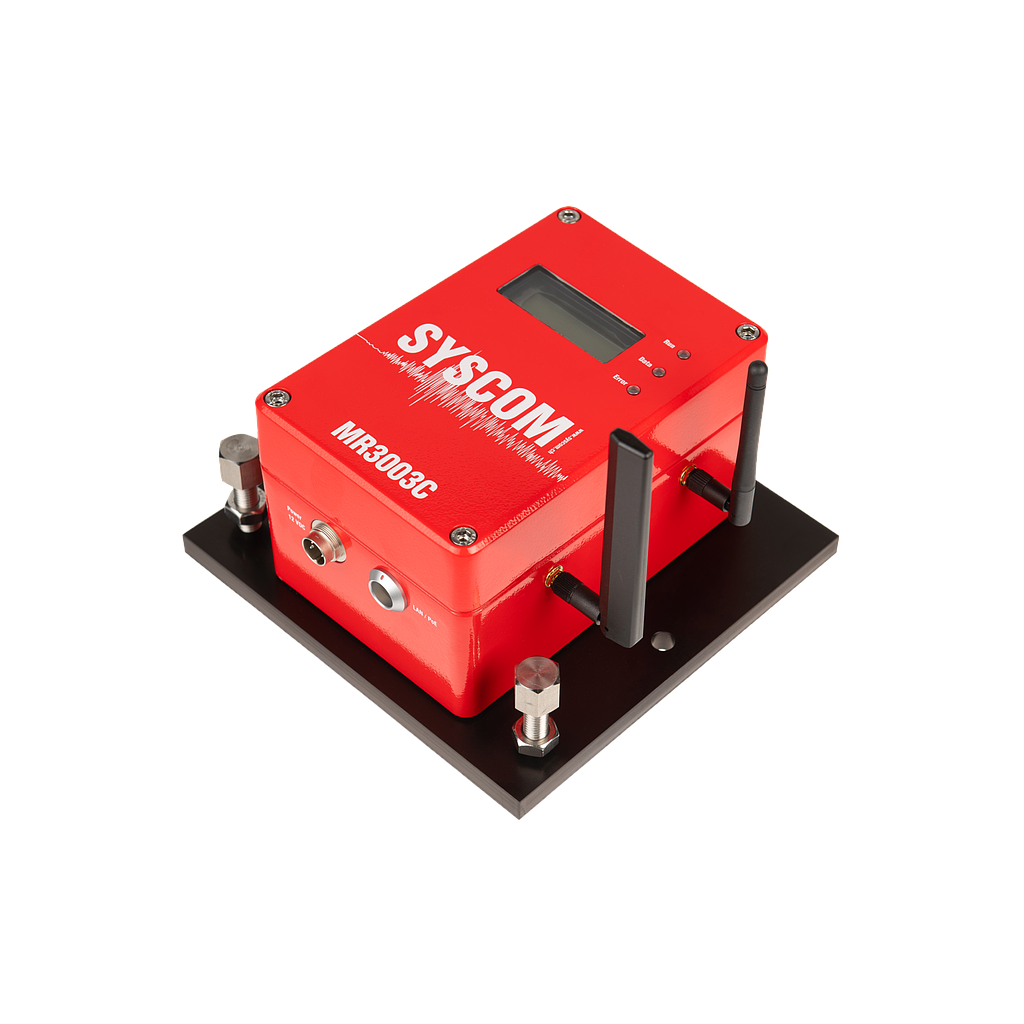

Syscom MR3003C Compact vibration/motion measurement system
Manufacturer: Syscom Model: MR3003C - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Applications
Civil Engineering and Human comfort
Industrial Vibrations - Construction Site Monitoring - Tunneling - Truck and Rail Traffic - Blasting Monitoring - Model Verification
Earthquake Engineering
Building Monitoring - Monitoring of Structures (Dams and Bridges)
Geology
Soil Characterization
Earth Science
Earthquake Monitoring (seismic intensity)
Continuous data stream in MiniSeed/SeedLink format
Main features
IP65 compact unit containing sensor, digital recorder and communications
Internal or external sensor
Purchasable with triaxial geophone or triaxial accelerometer
Option external battery pack
External display showing the most important information
Removable memory SD Card
Precise timing (GPS or NTP)
Power over Ethernet (PoE)
Wired & wireless connectivity
Embedded 4G module
Compliant to several norms for structural damage: DIN 4150-3, SN 640312 and others
Compliant to several norms for human comfort: DIN 4150-2, ISO 2631 and others
Embedded Web Server for the configuration
Event recording principle with multiple level triggers
Continuous background recording
DDNS, OpenVPN, FTP push network capabilities
Automatic sending of SMS and E-mail in case of event
Compatibility with SCS (Syscom Cloud Software)
API REST interface available on request.
Note: See datasheet for full specifications.
