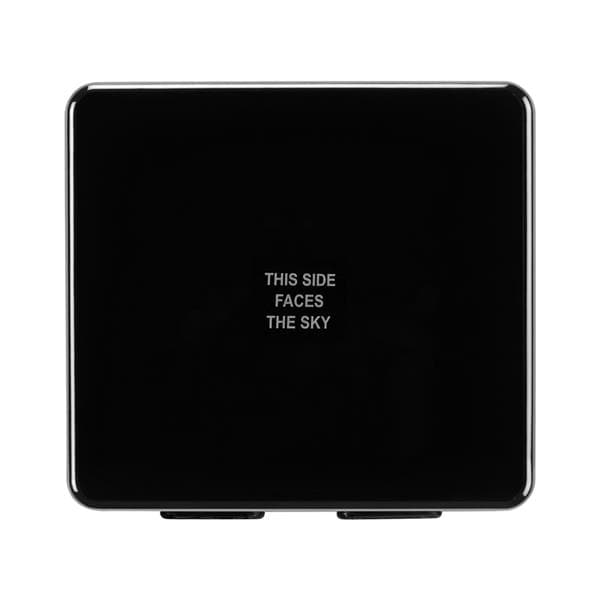

Taoglas MA997.A.003 MIMO 7in1 Guardian - 1*GNSS 2m RG-174 SMA(M):4*LTE MIMO 2m TGC-302 SMA(M):2*Wi-Fi MIMO 2m TGC-302 RP-SMA(M)
Manufacturer: Taoglas Model: MA997.A.003 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Gain: 4.23 dBi, 3.81 dBi, 5.15 dBi, 3.95 dBi, 3.32 dBi, 4.33 dBi, 7.42 dBi
Style: Panel
Width: 136.05 mm
Height: 20 mm
Length: 146.05 mm
IP Rating: IP67
Impedance: 50 Ohms
Cable Type: RG-174, TGC-302
Application: Automotive, Vehicle Tracking
Cable Length: 2 m
Polarization: Linear
Power Rating: 2 W
Mounting Style: Adhesive Mount
Frequency Range: 617 MHz to 7.125 GHz
Number of Bands: 11 Band
Mechanical Style: Module
Ground Plane Size: 70 mm x 70 mm
Maximum Frequency: 7.125 GHz
Minimum Frequency: 617 MHz
Termination Style: Connector
Antenna Connector Type: SMA Male
Protocol - GPS, GLONASS: GNSS
Protocol - WiFi - 802.11: WiFi
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
