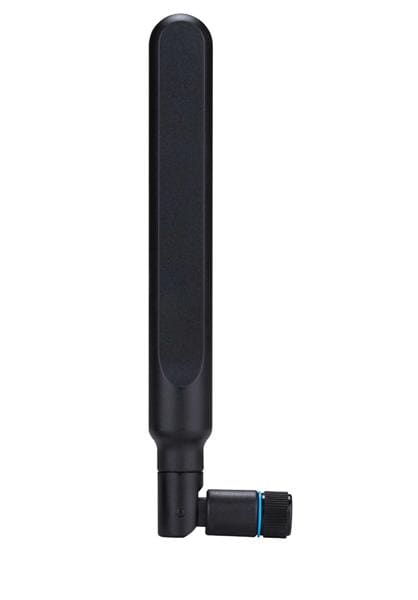

Taoglas TG.10R.A.0113 Passive Antenna Triton TG.10R 4G/3G/2G Terminal Antenna with 10kOhm diagnostic Resistor
Manufacturer: Taoglas Model: TG.10R.A.0113 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Gain: - 0.5 dBi, - 0.5 dBi, - 0.5 dBi, 1 dBi, 2 dBi, 1.5 dBi, 3 dBi
Style: Blade Tilt / Swivel
Length: 168 mm
Diameter: 13 mm
Impedance: 50 Ohms
Application: Cellular Application, Wireless Applications
Unit Weight: 21 g
Polarization: Linear
Power Rating: 50 W
Mounting Style: Panel Mount
Electrical Type: Monopole
Number of Bands: 7 Band
Center Frequency: 700 MHz, 800 MHz, 850 MHz, 900 MHz, 1575 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2600 MHz
Mechanical Style: Whip
Maximum Frequency: 2.5 GHz
Minimum Frequency: 700 MHz
Termination Style: Connector
Antenna Connector Type: SMA Male
Protocol - GPS, GLONASS: Galileo, GPS
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, WCDMA, HSPA, EDGE, GPRS
