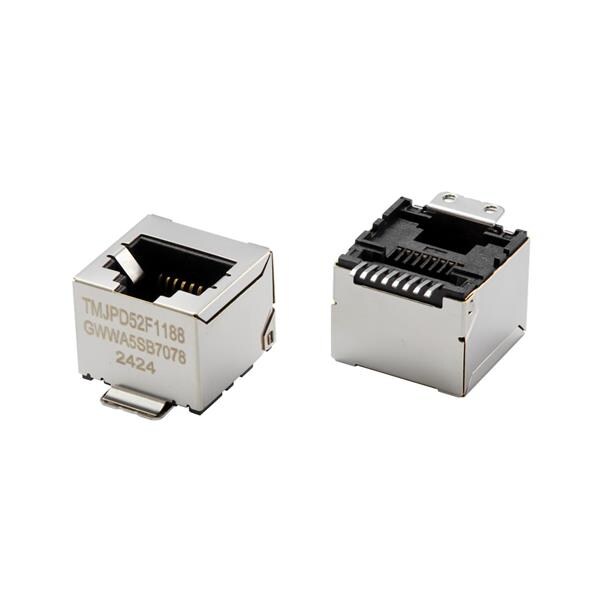

Taoglas TMJPD52F1188GWWA5SB7078 RJ45 Modular Jack Pure RJ45, 1x1, Vertical, SMT, Shielded, Gold 50 micro-in, Industrial grade
Manufacturer: Taoglas Model: TMJPD52F1188GWWA5SB7078 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Pitch: 1.27 mm
Gender: Jack (Female)
Shielding: Shielded
USOC Codes: RJ45
Application: Industrial Automation
Configuration: 1x8
Mating Cycles: 750 Cycles
Tab Direction: Top Entry
Current Rating: 1.5 A
Mounting Angle: Vertical
Mounting Style: PCB Mount
Voltage Rating: 125 VAC
Contact Plating: Gold
Number of Ports: 1 Port
Contact Material: Copper
Termination Style: SMD/SMT
Mounting Direction: Vertical
Number of Contacts: 8 Contacts
Dielectric Strength: 1000 VAC
Flammability Rating: UL 94 V-0
Number of Positions: 8 Position
Performance Category: Cat 5e
Insulation Resistance: 500 MOhms
Operating Temperature Range: - 40 C to + 85 C
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Number of Positions / Contacts per Port: 8P8C
