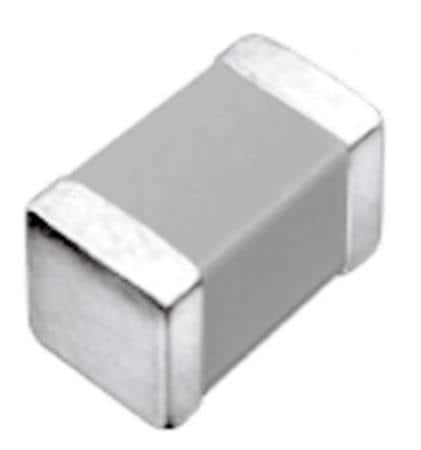

TDK AVRM1005C270KT101N Zinc Oxide Varistors 1.0x0.5mm EIA 0402
Manufacturer: TDK Model: AVRM1005C270KT101N - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Width: 0.5 mm
Height: 0.5 mm
Length: 1 mm
Tolerance: 10 %
Capacitance: 100 pF
Unit Weight: 1.300 mg
Qualification: AEC-Q100
Mounting Style: PCB Mount
Clamping Voltage: 44 V
Varistor Voltage: 27 V
Termination Style: SMD/SMT
Voltage Rating DC: 19 VDC
Peak Surge Current: 4 A
Surge Energy Rating: 60 mJ
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
