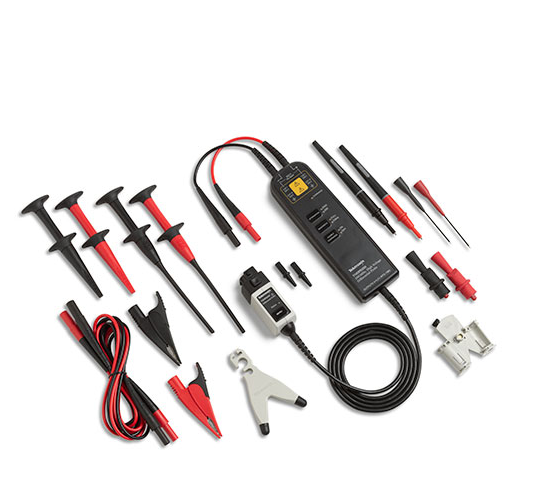

TEKTRONIX P5205A Differential Probes (100Mhz, 1300V)
Manufacturer: TEKTRONIX Model: P5205A - Request a Quotation
- Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Attenuation 50X / 500X
Differential Voltage 500X: ±1300 V
50X: ±130 V
Common Mode Voltage ±1300 V
Maximum Input Voltage-to-Earth 1000 V CAT II
Bandwidth 100 MHz
Input Impedance at the Probe Tip 5 MΩ || <2 pf="" br=""> Typical CMRR DC: >80 dB
100 kHz: >60 dB
3.2 MHz: >30 dB
50 MHz: >26 dB
Cable Length 1.8 m
