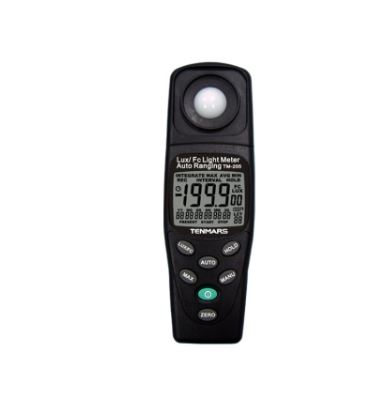

TENMARS TM-205 Light meter (20~200000Lux)
Manufacturer: TENMARS Model: TM-205 Origin: Taiwan - Request a Quotation
- Contact
- In stock: 6 Unit
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Specification
- Display: LCD- Measurement reange:
+ 20,200, 2000, 20000, 200000 Lux
+ 20,200, 2000, 20000 Foot-candle
- Sensor type: Silicon photodiode and filterv
- Accuracy:
+ +/- 3% (Calibrated to standard incandescent lamp 2856º K)
+ /- 8% (other visible light source TM-204)
+ /- 6%(other visible light source TM-203/205)
- Angle deviation from cosine characteristics
+ 30º invalid +/- 2%
+ 60º invalid +/- 6%
+ 80º invalid +/-25%
- Function
+ Data hold
+ zero adjustmen
+ Auto ranging
+ Auto power save
+ Low- battery indication
- Dimension, mass: 172x55x38mm, 250g
Model |
TM-203 |
TM-204 |
TM-205 |
Data hold |
V |
V |
V |
Max/ Min /AVG hold |
V |
|
|
Max hold |
|
V |
|
Zero adjustment |
V |
V |
V |
Auto ranging |
V |
|
V |
Auto power off |
V |
|
V |
Datalogger |
V |
|
|
Sensor |
Silicon photodiode and filter |
||
Measuring range |
20,200, 2000, 20000, 200000 Lux |
||
20,200, 2000, 20000 Foot-candle |
|||
Accuracy |
+/- 3% (Calibrated to standard incandescent lamp 2856º K) |
||
+/- 8% (other visible light source TM-204) |
|||
+/- 6%(other visible light source TM-203/205) |
|||
Angle deviation from |
30º |
+/- 2% |
|
cosine characteristics |
60º |
+/- 6% |
|
|
80º |
+/-25% |
|
DIMENSION |
|||
Meter size (LxWxH) |
172x55x38mm |
||
Weight (including battery) |
250g |
