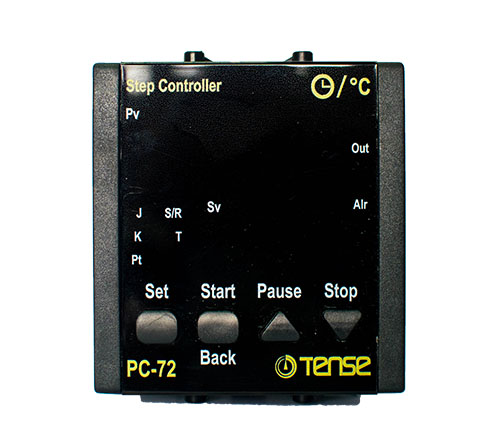

TENSE PC-72 Auto-Tune Pid Temperature
Manufacturer: TENSE Model: PC-72 Origin: Turkey Guarantee: 12 Month - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Diameter : 72x72mm
Display: LED
Sensor: J,K,S type T/C, Pt100
Measuring Range: -100 .. 600 oC, J type T/C, (Inpt=J), -100 .. 1300 oC, K type T/C, (Inpt=k)
0 .. 1750 oC, S type T/C, (Inpt=S) -100 .. 600 oC, Pt100, (Inpt=Pt)
Resolution: ± 1 oC
Accuracy: ± 0.3 %
Timer Accuracy: ± % 1.5 (compared to set time)
Control Form: ON-OFF or P, PI, PD, PID
Heat Output: Relay (NO + NC), 250VAC, 2A,
Alarm Output: Relay (NO + NC), 250VAC, 2A
Heat SET: 0 .. xxx ( Depending on type of sensor) oC
• Alarm SET : AL.tY = Abs; 0 .. Scale oC (A.SEt)
AL.tY = rel; -100 .. +100 oC (r.Alr)
Mount: front Panel
.jpg)
.jpg)
.jpg)
