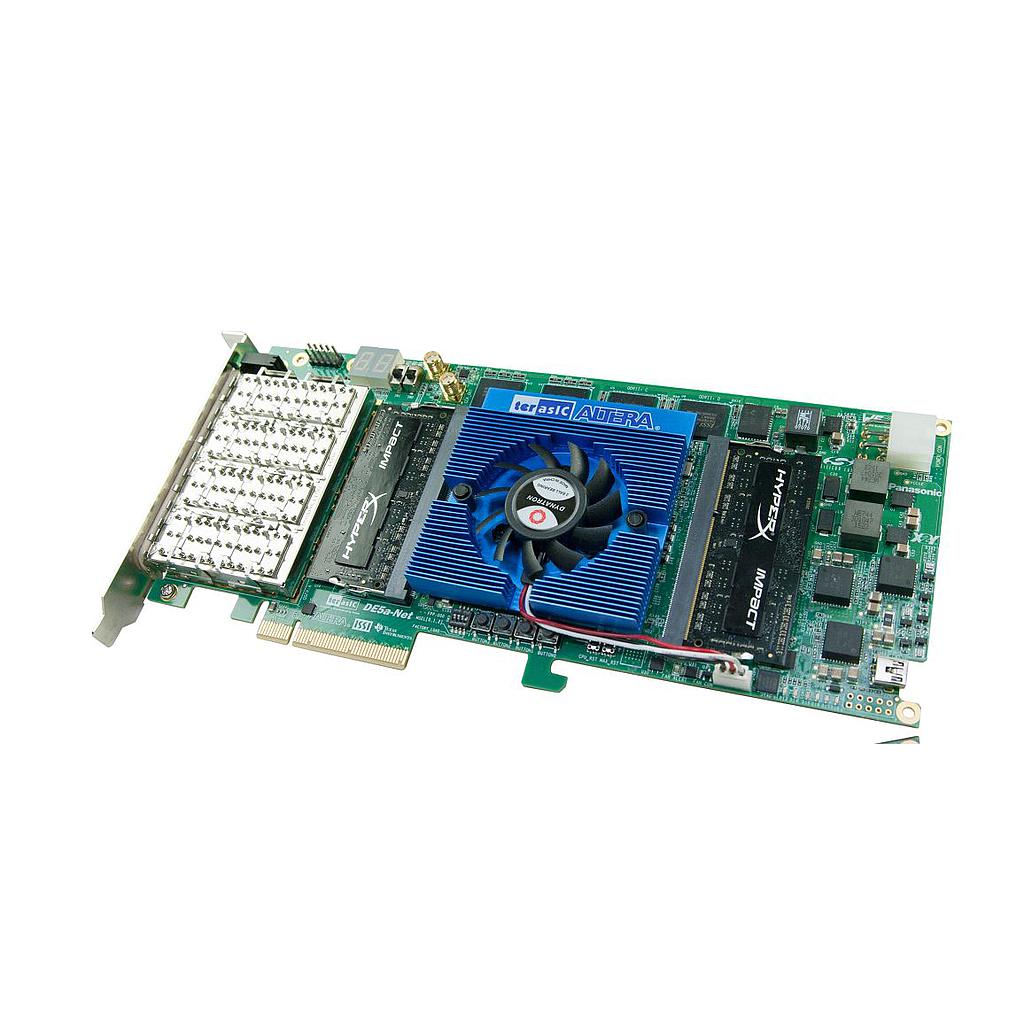

Terasic DE5a-Net Arria 10 FPGA Development Kit

  • Manufacturer: Terasic
    Model: DE5a-Net Arria 10
    • Request a Quotation Request a Quotation
  • Contact
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Manufacture: Terasic
Model: DE5a-Net Arria 10

1. FPGA
Altera Arria 10 GX FPGA (10AX115N2F45E1SG)
2. FPGA Configuration
On-Board USB Blaster II or JTAG header for FPGA programming
Fast passive parallel (FPPx32) configuration via MAX II CPLD and flash memory
3.Memory
256MB FLASH
2 Independent DDR3 SODIMM Sockets, up to 8 GB 933 MHz or 4GB 1066MHz
4 Independent 550 MHz QDRII+SRAMs, 18-bits data bus and 72Mbit for each
4. Communication and Expansion
Four QSFP+ connectors
PCI Express (PCIe) x8 edge connector (includes Windows PCIe drivers)
One RS422 expansion header
5. Kit contents
DE5a-Net Development Board
USB to USB Mini Cable
DDR3 2133 4GB SO-DIMM x2
Screw & Copper Pillar Package
AC Power Cord (Type B North American Plug)
PCIe Bracket (Installed)
Power Supply & Power Cable
Fan (installed)
DE5a-Net Quick Start Guide

Detail

Catalog

The Terasic DE5a-Net Arria 10 GX FPGA Development Kit provides the ideal hardware solution for designs that demand high capacity and bandwidth memory interfacing, ultra-low latency communication, and power efficiency. With a full-height, 3/4-length form-factor package, the DE5a-Net is designed for the most demanding high-end applications, empowered with the top-of-the-line Altera Arria 10 GX, delivering the best system-level integration and flexibility in the industry.

The Arria® 10 GX FPGA features integrated transceivers that transfer at a maximum of 12.5 Gbps, allowing the DE5a-Net to be fully compliant with version 3.0 of the PCI Express standard, as well as allowing an ultra low-latency, straight connections to four external 40G QSFP+ modules. Not relying on an external PHY will accelerate mainstream development of network applications enabling customers to deploy designs for a broad range of high-speed connectivity applications. For designs that demand high capacity and high speed for memory and storage, the DE5a-Net delivers with two independent banks of DDR3 SO-DIMM RAM, four independent banks of QDRII+ SRAM, high-speed parallel flash memory. The feature-set of the DE5a-Net fully supports all high-intensity applications such as low-latency trading, cloud computing, high-performance computing, data acquisition, network processing, and signal processing.
