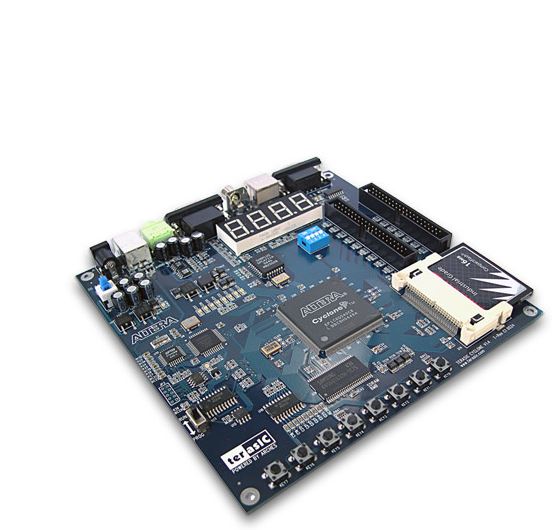

TREXC1 development board
Altera EP1C6Q240C8
Altera EP1S Serial Configuration Device
Built-in USB Blaster programming circuitry.
Support both JTAG and AS mode programming
Option to power via universal serial bus (USB)
Eight LEDs
Eight Schmitt-trigger de-bounced push buttons
1MByte Flash Memory
8MByte SDRAM (1M x 4 x 16)
CF Card Socket (True IDE mode)
16-bit CD-quality Audio DAC with line-out connector
TV Encoder with TV Out jack
RS-232 Transceiver with 9-pin connector
VGA DAC (4-bit resistor network) with VGA-out connector
PS2 Keyboard/mouse connector
4-bit DIP switches
4-bit 7-SEG display module
Two-40 pin expansion slots.
Size:151.5*151.3 mm
Cables and accessories
USB A->B cable (for both USB-blaster programming and the TREX C1 API controll)
7.5V DC Power Supply (We ship UK Plug for Europe/UK areas)
Quartus ® II Web Edition design software
Reference designs and C++ applications
Lab manual for using the C++
Lab Manuals for using the reference designs
The TREX C1 Development Kit provides a complete, high-quality, multimedia platform featuring Altera Cyclone (EP1C6Q248C8) FPGA device. With the built-in USB blaster circuits , the TR1 development board has many multimedia features for users to develop advanced video, audio, memory and storage applications using the most popular components in consumer electronic products such as DVD and VCD players.
The TR1 Development Kit also includes a C++ program and controller IPs for peripheral controls to allow users to build up advanced applications in shortest timeframe. Users can use either the USB blaster link or RS-232 link to control the board.
