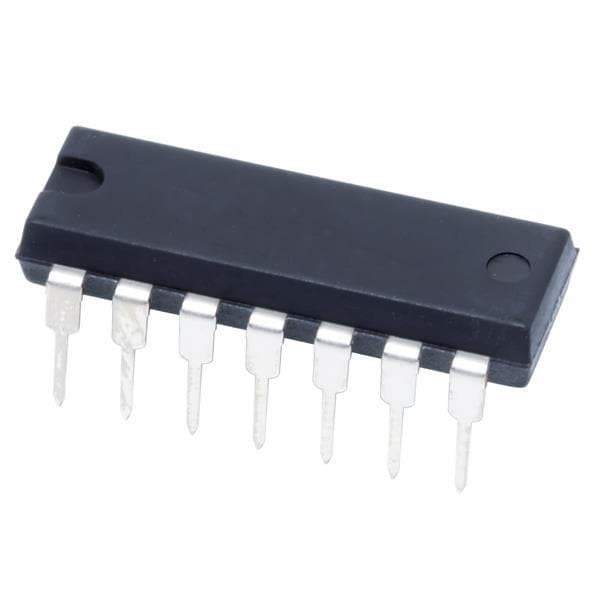

Texas Instruments CD74ACT08E Single-Function Gates Quad 2-Input AND Gat es A 595-CD74AC08E
Manufacturer: Texas Instruments Model: CD74ACT08E - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Width: 6.35 mm
Height: 4.57 mm
Length: 19.3 mm
Function: AND
Input Type: TTL
Logic Type: 2-Input AND
Output Type: CMOS
Unit Weight: 1 g
Logic Family: ACT
Logic Function: AND
Mounting Style: Through Hole
Number of Bits: 4 bit
Number of Gates: 4 Gate
Supply Voltage - Max: 5.5 V
Supply Voltage - Min: 4.5 V
Number of Input Lines: 8 Input
Number of Output Lines: 4 Output
Propagation Delay Time: 12.9 ns
Low Level Output Current: 24 mA
Operating Supply Current: 40 uA
Operating Supply Voltage: 5 V
High Level Output Current: - 24 mA
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
