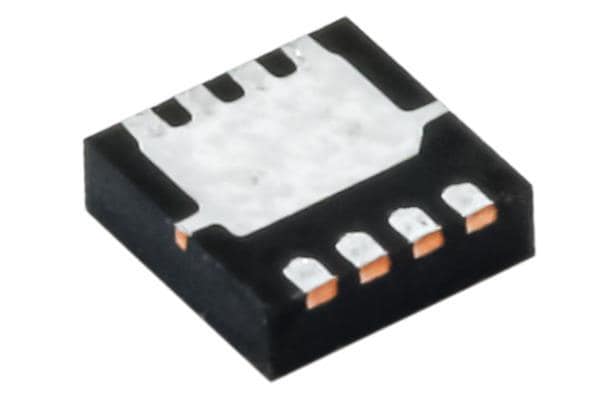

Texas Instruments CSD16340Q3 MOSFETs N Channel NexFET Pow er MOSFET A 595-CSD16340Q3T
Manufacturer: Texas Instruments Model: CSD16340Q3 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Width: 3.3 mm
Height: 1 mm
Length: 3.3 mm
Fall Time: 5.2 ns
Rise Time: 16.1 ns
Technology: Si
Unit Weight: 44.400 mg
Channel Mode: Enhancement
REACH - SVHC: Details
Configuration: Single
Mounting Style: SMD/SMT
Transistor Type: 1 N-Channel Power MOSFET
Qg - Gate Charge: 6.5 nC
Number of Channels: 1 Channel
Transistor Polarity: N-Channel
Pd - Power Dissipation: 3 W
Vgs - Gate-Source Voltage: - 8 V, + 10 V
Typical Turn-On Delay Time: 4.8 ns
Typical Turn-Off Delay Time: 13.8 ns
Id - Continuous Drain Current: 60 A
Maximum Operating Temperature: + 150 C
Minimum Operating Temperature: - 55 C
Rds On - Drain-Source Resistance: 4.5 mOhms
Vds - Drain-Source Breakdown Voltage: 25 V
Vgs th - Gate-Source Threshold Voltage: 600 mV
