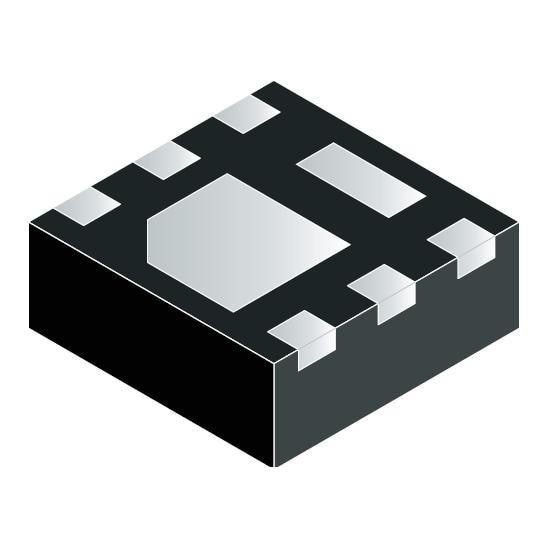

Texas Instruments CSD17313Q2 MOSFETs 30V N Channel NexFET Power MOSFET A 595-CSD17313Q2T
Manufacturer: Texas Instruments Model: CSD17313Q2 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Width: 2 mm
Height: 0.75 mm
Length: 2 mm
Fall Time: 1.3 ns
Rise Time: 3.9 ns
Technology: Si
Unit Weight: 8.700 mg
Channel Mode: Enhancement
Configuration: Single
Mounting Style: SMD/SMT
Development Kit: TMDSCSK388, TMDSCSK8127
Transistor Type: 1 N-Channel Power MOSFET
Qg - Gate Charge: 2.1 nC
Number of Channels: 1 Channel
Transistor Polarity: N-Channel
Pd - Power Dissipation: 17 W
Vgs - Gate-Source Voltage: - 8 V, + 8 V
Typical Turn-On Delay Time: 2.8 ns
Typical Turn-Off Delay Time: 4.2 ns
Id - Continuous Drain Current: 5 A
Maximum Operating Temperature: + 150 C
Minimum Operating Temperature: - 55 C
Rds On - Drain-Source Resistance: 30 mOhms
Vds - Drain-Source Breakdown Voltage: 30 V
Vgs th - Gate-Source Threshold Voltage: 900 mV
