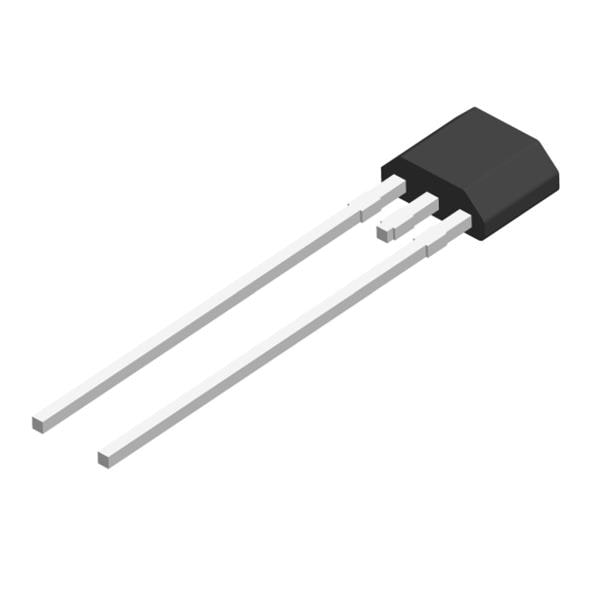

Texas Instruments TMP6131QLPGMQ1 PTC Automotive 1% 10-k ohm linear thermisto
Manufacturer: Texas Instruments Model: TMP6131QLPGMQ1 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Width: 1.62 mm
Height: 5.05 mm
Length: 4.1 mm
Tolerance: 1 %
Resistance: 10 kOhms
Unit Weight: 124.500 mg
Lead Spacing: 1.27 mm
Qualification: AEC-Q100
Current Rating: 400 uA
Mounting Style: PCB Mount
Termination Style: Radial
Voltage Rating DC: 5.5 VDC
Temperature Coefficient: 6400 PPM/C
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
