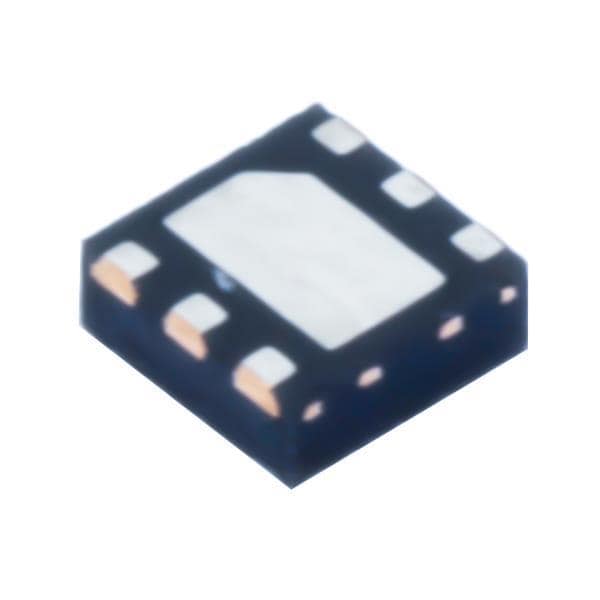

Texas Instruments TVS1800DRVR ESD Suppressors 18V flat-clamp surge protection device 6
Manufacturer: Texas Instruments Model: TVS1800DRVR - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Polarity: Unidirectional
Unit Weight: 12 mg
Working Voltage: 18 V
Clamping Voltage: 23.4 V
Breakdown Voltage: 19.5 V
Termination Style: SMD/SMT
Number of Channels: 1 Channel
Vf - Forward Voltage: 500 mV
Cd - Diode Capacitance: 116 pF
Ipp - Peak Pulse Current: 40 A
Vesd - Voltage ESD Air Gap: 30 kV
Vesd - Voltage ESD Contact: 11 kV
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
Pppm - Peak Pulse Power Dissipation: 960 W
