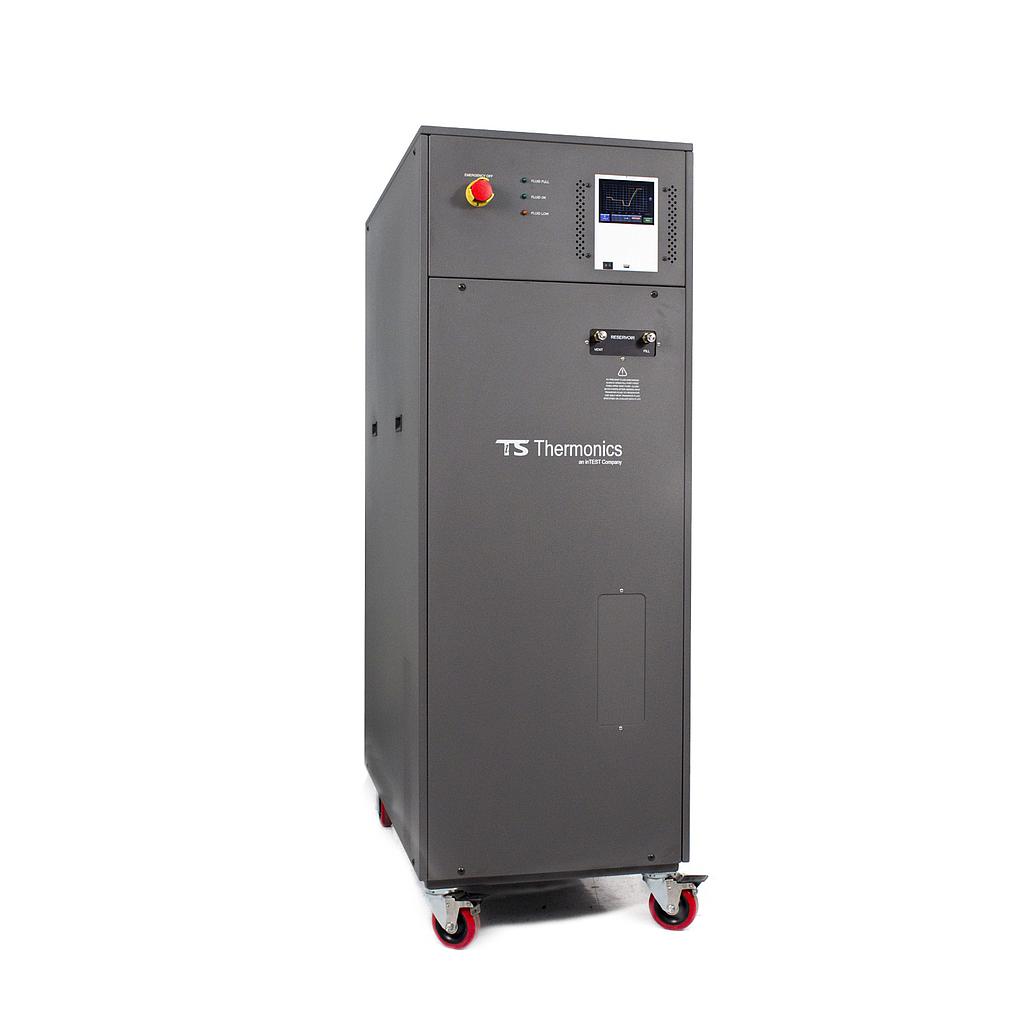

Thermonics A-40-2700 Process Chillers (2.7kW @ -40°C)
Manufacturer: Thermonics Model: A-40-2700 Guarantee: 12 Month - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Cooling and heating capacity
Capacity:
Condenser: Air-cooled
Process Heater: 1.7kW
Process Fluid Set Point Range: -40 to +50°C
Fluid Stability: ±0.5°C (at rated load)
Pump and process fluid
Pump: Gear or Turbine
Process Fluid: Compatible with a variety of process fluids.
Published specifications using Syltherm XLT.
Wetted Materials: Standard materials include copper, nickel,
brass, and plastic. Optional: Fully stainless steel
Flow Rate: 4 GPM (15.1 LPM) at 50 PSIG. Optional: Flow
monitoring and control
Available Pressure: 50 PSIG (or less), Optional: Pressure
monitoring and control
Fluid Connections: 0.75” NPT
Controls and
compliance
User Interface: 5.7” color touch-screen with temperature
graphing and charting
Temperature Measurement: Range: -210 to +680°C, Resolution:
0.1°C full scale
Remote Communications: Ethernet, Serial-USB, Web server.
Optional: RS-232
Alarms: Low Flow, Low Reservoir, Out-of-temp Range. Optional:
Drip Tray
Diagnostics: Runtime hours (controller, chiller, compressor,
pump), system performance log, valve activation counts, enclosure temperature
Chiller Compliance: CE / RoHS / designed to meet UL1995/UL61010
Operating requirements
Ambient Temperature Range: 10 to 32°C (25°C nominal)
Power Requirement: 3-phase, 208 to 230v, 60Hz
System Dimensions (approx.): 43.0”W X 60.0”D X 78" H (109.2
X 152.4 X 198.1 cm)
