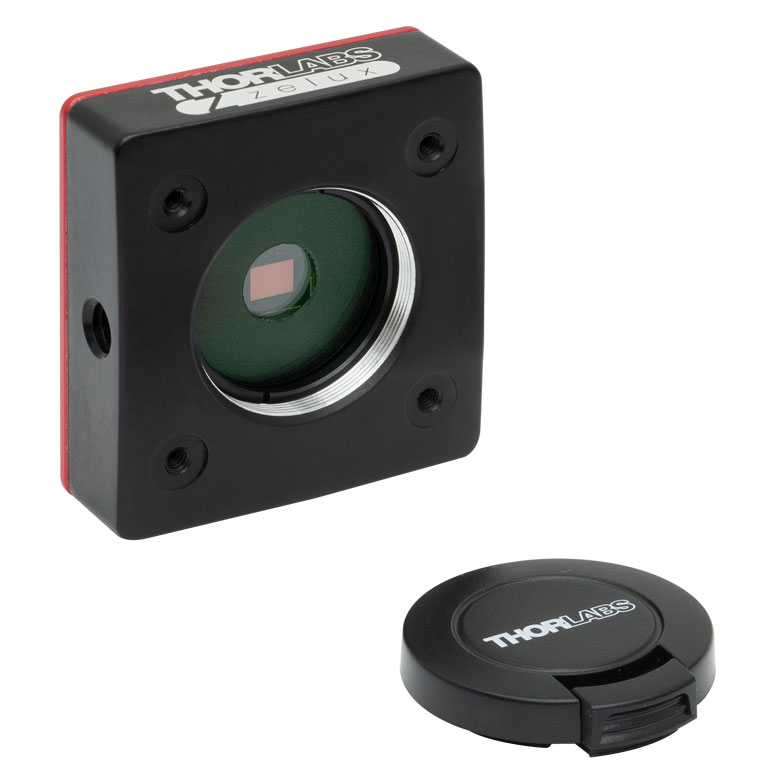

THORLABS CS165MU1/M Zelux 1.6 MP Monochrome Compact Scientific Digital Cameras (M6 Taps, External Trigger)

Sensor Type: Monochrome CMOS

Hardware Trigger/Strobe: Yes (a)

Peak Quantum Efficiency: 69% at 575 nm

Removable Optic: AR-Coated Window, Ravg < 0.5% per Surface (400 - 700 nm)

Vertical and Horizontal Digital Binning: 1 x 1 to 16 x 16

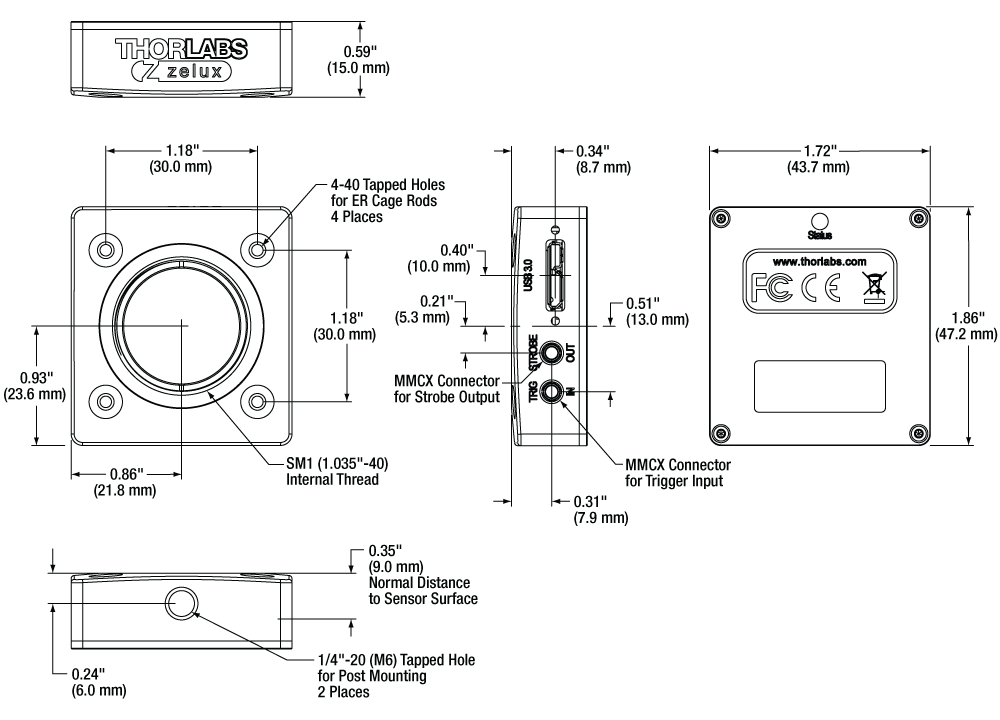

Mounting Features:

 - Metric: Two M6 Taps for Post Mounting, 30 mm Cage Compatible

- Taps are on Adjacent Sides of the Housing

(a) Two MMCX-to-BNC cables (Item # CA3339) are included with versions that have external hardware triggers.

(b) Please see the graph below and to the right for more information.

(c) Binning >1 x 1 is only available when the camera is operated in unprocessed mode (monochrome).

Common Specifications

Number of Active Pixels(Horizontal x Vertical): 1440 x 1080

Imaging Area(Horizontal x Vertical): 4.968 mm x 3.726 mm

Pixel Size: 3.45 µm x 3.45 µm

Optical Format: 1/2.9" (6.2 mm Diagonal)

Max Frame Rate: See in the manual

ADC(a) Resolution: 10 Bits

Sensor Shutter Type: Global

Read Noise: <4.0 e- RMS

Full Well Capacity: ≥11 000 e-

Exposure Time: 0.040 ms to 26843 ms in ~0.025 ms Increments

Region of Interest (ROI): 80 x 4 Pixels (b) to 1440 x 1080 Pixels, Rectangular

Dynamic Range: Up to 69 dB

Lens Mount: Internal SM1 (1.035"-40) Threading; SM1A10 CS-Mount Adapter and SM1A10Z C-Mount Adapter Sold Below

USB Power Consumption: 1.17 W

Ambient Operating Temperature: 10 °C to 40 °C (Non-Condensing)

Storage Temperature: 0 °C to 55 °C

(a) ADC = Analog-to-Digital Converter

(b) When Binning at 1 x 1
