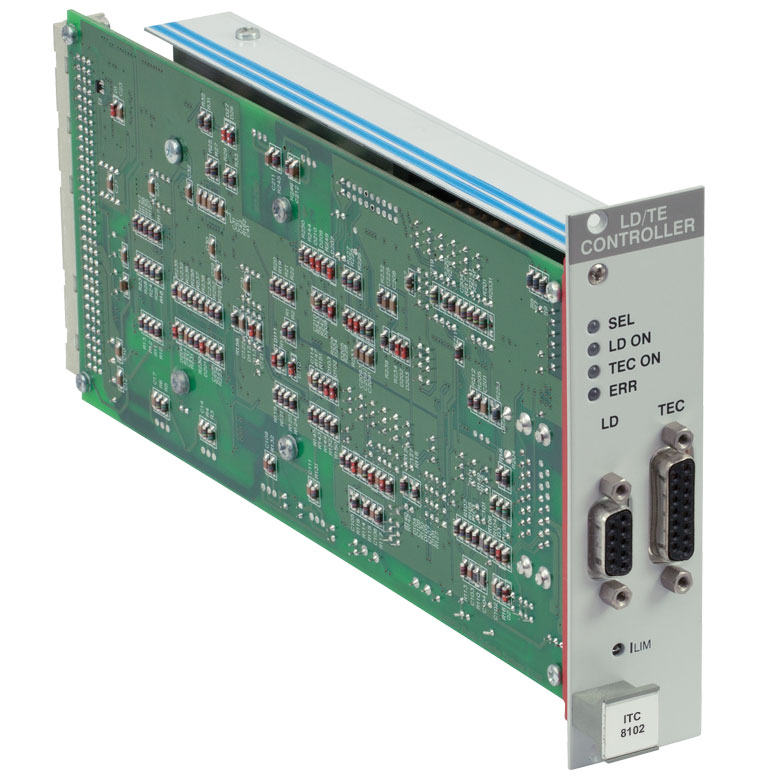

THORLABS ITC8102 PRO8 Laser Diode Current & Temperature Control Modules (±1 A, 16 W, Dual Connector)

Laser Controller: Current Control

Control Range of Injection Current: 0 to ± 1 A

Compliance Voltage: >5 V

Setting Resolution: 15 µA

Accuracy (Full Scale): ±0.1%

Noise without Ripple (10 Hz to 10 MHz, RMS, Typ.): <10 µA

Ripple (50 Hz, RMS, Typ.): <1.5 µA

Transients (Processor, Typ.): <50 µA

Transients (Other, Typ.): <1 µA

Drift (24 hrs, at Constant Ambient Temperature, Typ.): <25 µA

Temperature Coefficient: <50 ppm/°C

Laser Controller: Power Control

Control Range of Photo Current: 10 µA to 2 mA

Reverse Bias Voltage: 0 to 10 V (adjustable)

Resolution Photo Current: 30 nA

Accuracy (Typ.): ±0.1%

Laser Controller: Current Limit

Setting Range: 0 to ≥ 1 A

Resolution: 30 µA

Accuracy: ±2 mA

Laser Voltage Measurement

Measurement Principle: 4-Wire (improves accuracy by compensating for cable resistance)

Measurement Range: 0 to 10 V

Resolution: 0.3 mV

Accuracy: ±5 mV

Temperature Controller: Output

Control Range of TEC Current: -2 A to +2 A

Compliance Voltage: >8 V

Maximum Output Power: 16 W

Measurement resolution of TEC Current: 0.07 mA

Measurement resolution of TEC Voltage: 0.3 mV

Noise and Ripple Typ.: <1 mA

Temperature Controller: Current Limit

Setting Range (20-Turn Pot): 0 to ≥2 A

Resolution: 0.5 mA

Setting Accuracy: ±20 mA

AD590, AD592, & LM335

Control Range: -12.375 to +90 °C

Resolution: 0.0015 °C

Accuracy: ±0.1 °C

Temperature Stability (Typ.): <0.001 °C

General Data

Width: 1 PRO8 Slot

LD/TEC-Connector: 9-Pin (LD), 15-Pin (TEC)

Operating Temperature: 0 to 40 °C

Storage Temperature: -40 to +70 °C

All Data Valid at 23 ± 5°C and 45 ± 15% Rel. Humidity
