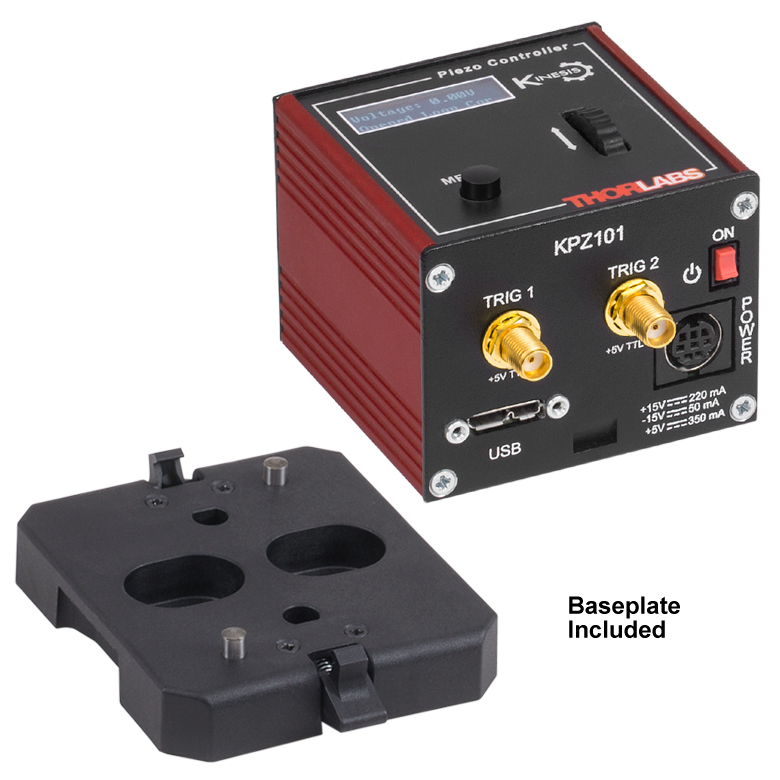

THORLABS KPZ101 Kinesis K-Cube Piezo Controller (0 - 150 V)
Manufacturer: THORLABS Model: KPZ101 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Piezoelectric Output
Drive Voltage (SMC Male): 0 - 150 V (SMC Male Connector)
Maximum Drive Current (Continuous): 7.5 mA
User Voltage Control: Digital Potentiometer (Resolution Selectable)
Stability: 100 ppm Over 24 hrs (After 30 min Warm-Up)
Output Noise: No Load: <5 mVRMS. 3.6 µF Load: <3 mVRMS
Typical Piezo Capacitance: 1 - 10 µF
Drive Bandwidth: 1 kHz (1 µF Load, 1 Vp-p)
Drive Input (SMA Female): 0 - 10 V
Output Monitor (SMA Female): 0 - 10 V
T-Cube Controller Hub Connector: 26-Way ERNI
General
Input Power Requirements: +15 V @ 220 mA. -15 V @ 50 mA. +5 V @ 350 mA
USB Connector Type: USB 3.0
USB Connection Speed: USB 1.1 Full Speed (12 Mbps)
Housing Dimensions(a) (W x D x H): 60.0 mm x 60.0 mm x 49.2 mm (2.36" x 2.36" x 1.94")
(a) Including Top Panel Controls
