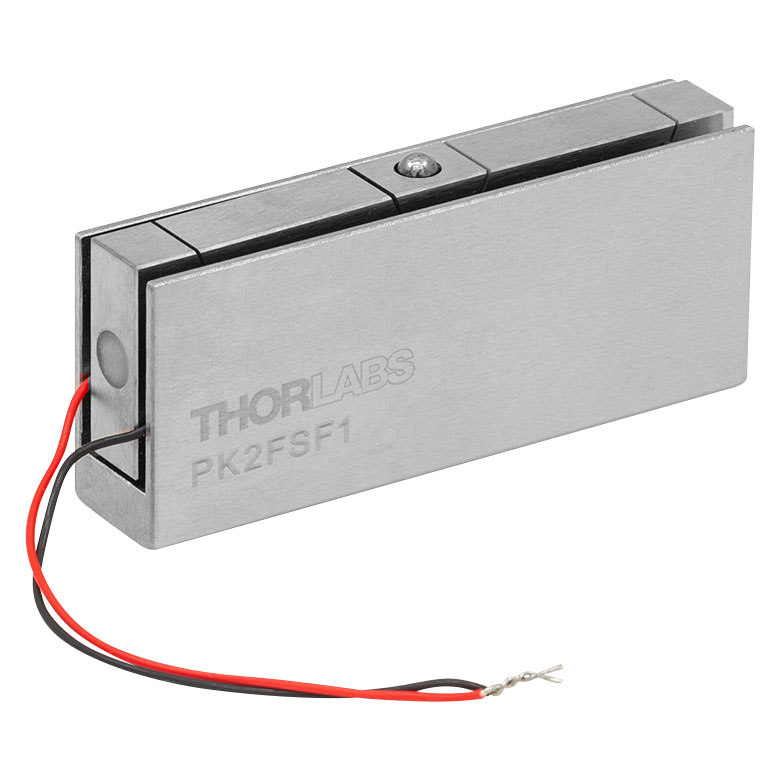

THORLABS PK2FSF1 Amplified Piezoelectric Actuators (75 V, 220 µm)
Manufacturer: THORLABS Model: PK2FSF1 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Drive Voltage Range (Max): 0 to 75 V
Mounting Options: M2.5 Taps and Top Ball Contact
Displacement (Free Stroke): 220 µm
Outer Dimensions(b): 22.3 x 11.0 x 53.4 mm (0.88" x 0.43" x 2.10")
Max Pulling Force: 5 N
Max Pushing Force: 100 N
Resonant Frequency: 1.0 kHz
Capacitance: 9.0 µF ± 15%
(a) All specifications are quoted at 25 °C, unless otherwise stated.
(b) Not Including Wires
