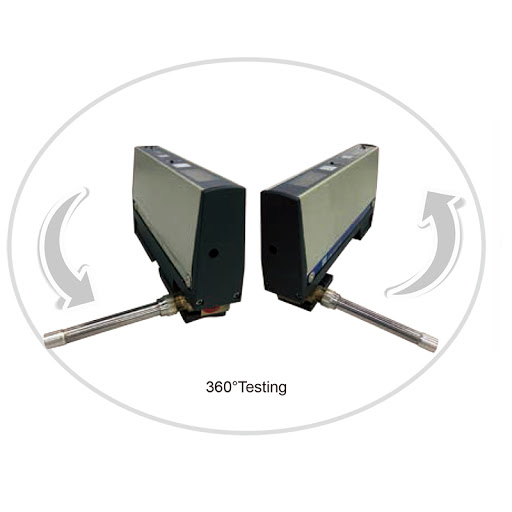

TIME 3210 Surface Roughness Tester
Manufacturer: TIME Model: 3210 Origin: China Guarantee: 12 Month - Request a Quotation
- Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Measuring range:
Ra: 0.03μm~6.35μm
Rt: 0.2μm~25.3μm
Rz: 0.2μm~25.3μm
Tolerance: ≤±15%
Repeatability: ≤12%
Display Resolution: 0.01μm
Cutoff length (L): 0.8mm (Filter: RC Filter)
Evaluation length: 1L, 3L, 5L(selectable)
Driver speed: 3mm/s
Display: LCD, 3 digital
Interface: RS232
Power: 9V alkaline battery
Pickup: Inductive
The max. testing force of pickup: <16mn
Operating temperature: 0℃ ~ 40℃
Storage temperature: -20℃ ~ 65℃
