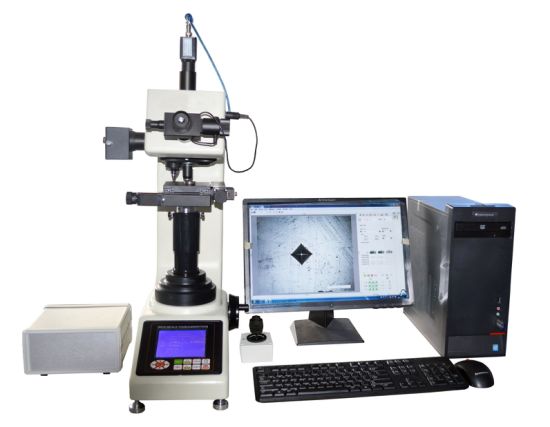

TIME V3.0 Micro/Vicker Hardness Automatic Measuring System
Manufacturer: TIME Model: V3.0 Origin: China Guarantee: 12 Month - Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Technical Specification
Computer: 2G memory, 500G hard disk, 19 inch LCD screen
Operating system: Win XP, Win7
Digital imaging system
High resolution: 130 million pixel, 1280×1024
High speed acquisition: 1280×1024 Resolution: 25 FPS
High definition: Black and white images and clarity is better.
Target surface size: 1/2 inch
X-y automatic test table
Table size: 110×110×50 mm
Maximum travel: 50×50 mm
Minimum step: Less than 2μm
Movement speed: Adjustable
Control mode: Manual control, electric control, computer control
X-y test table - computer control mode
Location movement: The test table directly moves to the software settings;
Point movement: Select any point of the sample, moved to the below of the indenter;
Directional movement: Click the eight directions to make the test table move and the moving step can be set up;
Arbitrary movement: Click any directions to make the test table move and make it easy for users to browse the specimen surface;
Variable speed movement: There are two speeds (fast and slow) when moving the test table and the speed is optional and adjustable;
Other function: Original position arbitrary setting, automatic reset, mechanical limit, and other professional features to meet various requirements.
Measuring method:
Automatic mode——Automatic test table moving (X, y, Z direction) + automatic reading
Manual mode 1——Automatic loading + manual eyepiece scribed line measurement
Manual mode 2——Manual test table moving + manual focus + Automatic / manual measurement
Automatic / manual reading
Automatic reading time: Single indentation reading time is about 300 milliseconds; Automatic measurement precision: 0.1μm; Automatic measurement repeatability: ±0.8%
Manual reading: Manual pick, automatic search points, 4 points measurement, 2 diagonal measurement
Results save / output
Save / output measurement data and experimental parameters, including D1, D2, HV, X, y etc.;
Save / output effective hardening layer depth curve report;
Save / output image.
Standard Delivery
Computer (Hard disk: 500G, Memory: 2G, 19 inch LCD screen)
Ink Jet Printer
CCD Camera
1.5× Adapter
USB Softdog
Control Cables
RS232 Cable
Joystick
Motorized Test Table
Motorized Test Table Control Box
Measuring Software
