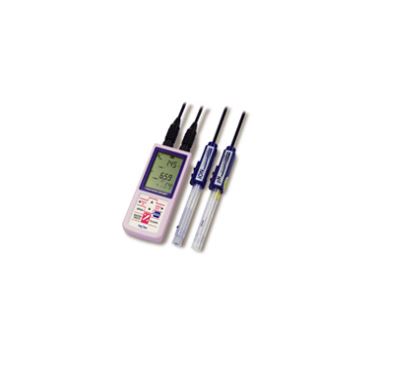

TOA-DKK IM-32P Handheld Ion/pH Meter (0~14pH; 0~±2000mV;0-100.0℃)

  • Manufacturer: TOA DDK
    Model: IM-32P
    Origin: Japan
    Guarantee: 12 month
    • Request a Quotation Request a Quotation
  • Contact
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Manufacturer: TOA-DKK

Model: IM-32P

Origin: Japan

Warranty: 12 months


-Measuring Method:

 +pH: Glass electrode method;

 +Ion: Ion electrode method

-Display: Custom LCD (simultaneous display of dual channel measured data)

-Sensor connection:

 +CH1: pH、ORP、Ion

 +CH2: pH、ORP、Ion

-Meas. Range:

 +pH: 0.00-14.00

 +ORP:0-±2000mV

 +Temperature: 0-100.0℃

 +Ion: differs according to the electrode that is used. (Temperature measuring function is not provided.)

-Display Range:

 +pH: -2.00-16.00

 +ORP: 0-±2200 mV

 +Ion: 0.0μg/L-999 g/L

 +Temperature: -5-110.0℃

-Repeatability (Main unit):

 +pH: ±0.02 pH

 +ORP: ±2 mV

 +Ion: ±0.5%FS

 +Temperature: ±0.2℃

-Temperature compensation: Auto/Manual Not applied to ORP and ion

-Calibration: pH/ion: Capable of three- point calibration

-Temperature Calibration: One-point calibration

-Data Memory: 1000 data points

-Auto Hold Function: Provided (Stability  threshold  : Fixed)

-Clock Function: Provided (To be shown while conducting a measurement)

-Interval Memory Function: Provided (Interval: The interval can be specified between 1 sec.-99 min. 59 sec. or 2 sec.-99hr. 59 min.)

-Printing Function: Can connect the external printer EPS-P30 (option)

-RS-232C Interface (non-isolated):

 +Connectable Devices: PC or external printer EPS-P30 (option)

 +Communication Specifications: Communication system: Start-stop synchronous method; Baud rate: 19,200 bps;

 Character length: 8 bits; Parity: None; Stop bit: 1 bit

-Analog Output (non-isolated):

 +Number of Outputs/Items:

  ch1: Number of outputs: Number of outputs: 2 Measured value (not available for ion) and temperature

  ch2: Number of outputs: Number of outputs: 2 Measured value (not available for ion) and temperature

 +Output Specification: pH: ±700mV (pH0-14); ORP: ±1V (0-±2000mV); Temperature: 0-1V (0-100℃ )

-Waterproof Construction: IP67 (Enabled if the sensor is connected and if the external I/O portions are masked) (Can be immersed in water for 1m and 30 min.)

-Performance Compensation Temperature: 0-45℃

-Power Source: AA alkaline battery/nickel-hydrogen battery (2 pieces) or special AC adapter (6VA option)

-Power Consumption(If 3 volt battery is used)*2: Approx. 0.004W

-Battery Life: Approx. 1500hours

-Outside Dimensions: Approx. 68 (w) x 35 (h) x 173  (d)  mm

-Mass (Including Batteries): Approx. 300g

-Inluding:

+ Main unit

+ pH Sensor: GST-2729C

+ Standard solution pH 6.86, 100mL

+ Standard solution pH 6.86, 100mL

+ Internal filling solution 50mL

+ Beakers (3 pcs)

+ Hand strap: OTZ00006

+ AA battery (2pcs)

+ Connector protective cap: OTD00001

+ Manual

Detail

-Tính năng:

+ Màn hình có 2 kênh, đo đồng thời và hiển thị độ pH/Ion

+ Thiết kế tiết kiệm điện; pin có thể sạc lại được

+ Thiết kế chống thấm nước (IP67, ngâm sâu 1m, tối đa 30 phút)

+ Lưu trữ dữ liệu lên đến 1000 dữ điểm

+ PC và máy in ngoài có thể kết nối

Các hạng mục đo lường:

pH, ORP, Ion, nhiệt độ

(Các điện cực ORP và Ion được bán riêng)

Ứng dụng: Dùng để độ pH, ORP, Ion, nhiệt độ trong phòng thí nghiệm
