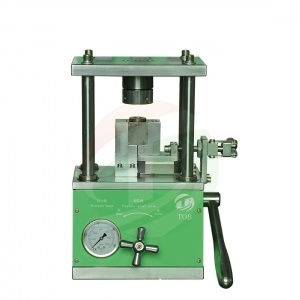

TOB TOB-CF650 Hydraulic Battery Sealing Machine For Cylinder Cell And Coin Cell (0-250 kg/cm^2)
Manufacturer: TOB Model: TOB-CF650 Origin: China Guarantee: 12 Month - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Driving Force: Manual hydraulic pressing up to 5T
Pressure Gauge: 0-3500 psi (0-250 kg/cm^2)
Body: Stainless Steel
Crimping Dies: Six standard die selectable: CR123 /18650 / 26650 / 32650 / AA /AAA
Product Dimensions: 330mm(L) x 240mm(W) x 400mm(H)
Net Weight: 26 kg (58 lbs)
Datasheet
Application Notes
Customized die for other cylindrical cell types is available upon request
It is necessary to groove the opening end of the cylindrical case by using the TOB-GC650 grooving machine before sealing the cap
Each type of cylinder cell can only be sealed specifically by certain model of equipment. Please select the type of cylinder cell in the Product Options drop box to check the model number and price for the corresponding crimping die of each cylinder cell type
