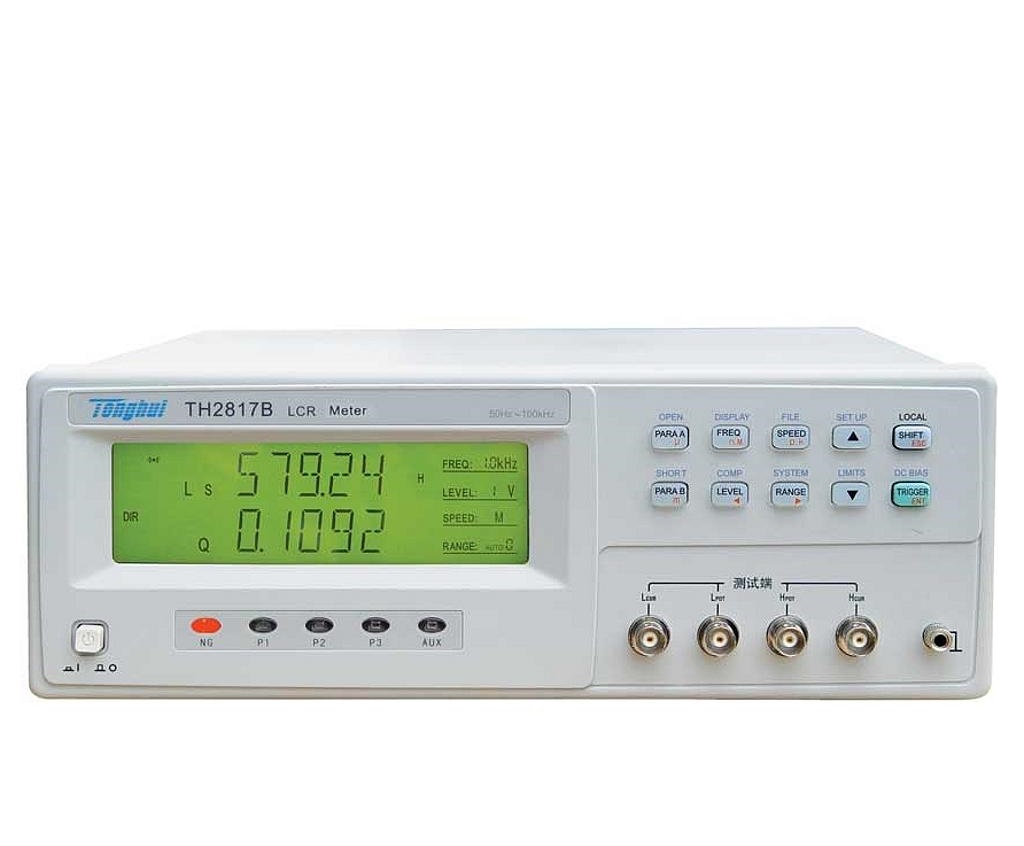

Tonghui TH2817B LCR Meter (50Hz~100kHz)

Measurement parameter: LCR |Z|, R, X, G,B, C, L, Q, D, θ(deg), θ(red)

Basic accuracy: 0.1%

Measurement speed: Fast: 20, Med: 8, Slow: 2 (times/second) (≥1kHz)

Calibration function: Open/Short frequency point, full frequency correction

Measurement terminal: 5-terminal

Display mode: Direct, Δ, Δ%

Display: 5-digit resolution

Signal frequency: 10 points: 50Hz, 60Hz, 100Hz, 120Hz, 1kHz, 10kHz, 20kHz, 40kHz, 50kHz, 100kHz

Output impedance: 30Ω, 100Ω

Test level: 0.1Vrms, 0.3Vrms, 1Vrms

Measurement display range:

- |Z|, R, X: 0.0001Ω - 99.999MΩ

- C: 0.001pF - 9999.9µ F

- L: 0.001µH - 99.999kH

- D: 0.0001 - 9.9999

- Q: 0.0001 - 9999.9

- θ: (DEG) -179.99º - 179.99 º

- θ: (RAD) -3.1415 - 3.1415

- Δ%: -99.999% - 999.99%

Operating temperature & Humidity: 0°C - 40°C, ≤90%RH

Power supply: 198V - 242V, 47.5Hz - 52.5Hz

Power consumption: ≤ 30VA

Dimensions (W×H×D): 275mmx120mmx425mm

Weight: Approx. 3.8 kg
