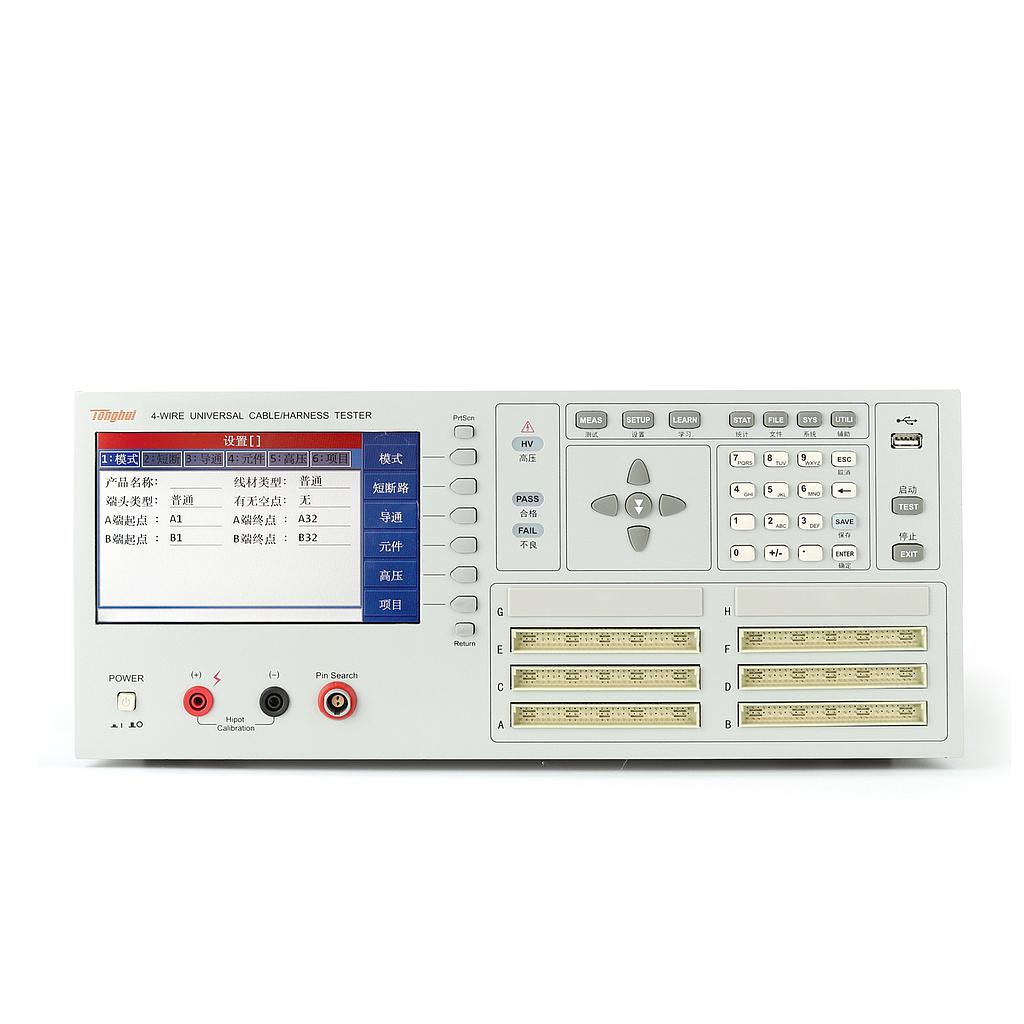

Tonghui TH8602-3 Cable/harness Tester (192 pin)
Manufacturer: Tonghui Model: TH8602-3 Origin: China Guarantee: 12 Month - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Test Pin: 192
Passive Component:
- Signal Source: 50Hz — 300kHz, 1Vrms
- Capacitance Test: 1pF — 1000μF
- DCR: 5mΩ — 10MΩ
Conductance/Transient Conduct: 5mΩ — 950Ω
DC Withstand Voltage: Voltage: 5V — 1000V, Current: 1μA — 11.5mA.
AC Withstand Voltage: Voltage: 50V — 750V, Current: 0.01mA — 11.5mA.
ARC Detection: Level 8
Insulation Resistance: Voltage: 5V — 1000V, Resistance: 1MΩ — 5GΩ.
Open/Short Circuit: 1kΩ — 50kΩ
Diode Test: Forward voltage drop: 0 — 7.5V, LED lighting time setting, Reverse leakage current.
Test Speed:
- Transient Open/short: 4ms
- Transient Open: 5us - 2ms
