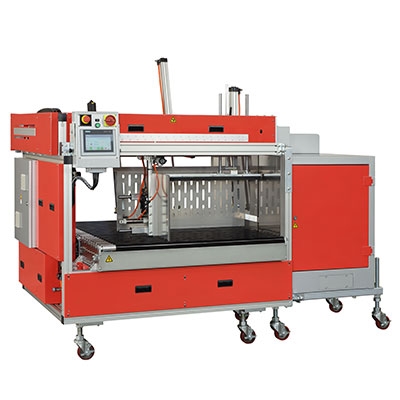

Transpak TP-702CTRS High Speed Strapper for Specialty Folder Gluer Boxes (5-12mm, 1-55kg)
Manufacturer: Transpak Model: TP-702CTRS Origin: Taiwan - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
The new TP-702CTRS is designed to strap specialty boxes, including crash lock boxes, four corner tray, and other folded type boxes from shingled-stream folder gluer output.
Maximum Bundle Size
950 x 400 x 1300 mm (arch width 1000mm)
1250 x 400 x 1300 mm (arch width 1300 mm)
1550 x 400 x 1300 mm (arch width 1600 mm)
Capacity: Up to 23 bundles/minute (single strap)
Strap Width: 5 mm, 6 mm, 9 mm, or 12 mm
Strap Tension
1 - 32 kg (for 5 mm, 6 mm, 9 mm)
1 - 55 kg (for 12mm)
Electrical Requirements: 220V, 380V, 400V, 415V 50/60Hz 3PH
Options
Light tower with low strap sensor
Foot pedal switch
Uplifted support
Powered top conveyor
Additional backstop
Video
Watch as reference: TP-702CTRS High Speed Corrugated Strapper for Specialty Folder Gluer Boxes - TRANSPAK
Datasheet
The new TP-702CTRS is designed to strap specialty boxes, including crash lock boxes, four corner tray, and other folded type boxes from shingled-stream folder gluer output. The clever side-pusher and backstop designs ensure of the best stack condition after strapping and protect delicate boxes from damage without sacrificing its high speed. TP-702CTRS is an efficient squaring and strapping solution for specialty folder gluer products.
Features
Compact & robust strapping head
Ascending backstop with sensor
Easy maintenance
Siemens PLC and HMI
Quick and effortless changeover
Free access to strap guides (patents registered)
Auto strap ejector
Strap end ejector
Sensor controlled heater
Adjustable table height between 700mm and 1000 mm
