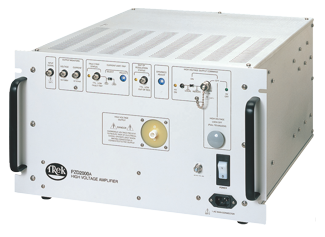

Trek PZD2000A-L High Voltage Amplifier (100/115V)

  • Manufacturer: TREK
    Model: PZD2000A-L
    Origin: Virgin Islands (USA)
    Guarantee: 12 month
    • Request a Quotation Request a Quotation
  • Contact
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Manufacturer: Trek

Model: PZD2000A-L

Origin: USA

Warranty: 12 months

Line Voltage: 100/115V

Output Voltage Range: 0 to ±2 kV DC or peak AC

Output Current Range: 0 to ±200 mA DC or ±400 mA peak AC*

Maximum duration for ±400 mA current pulse is 2 ms at 50% duty cycle using a square wave

Input Voltage Range: 0 to ± 10 V DC or peak AC

Input Impedance: 25 kΩ, nominal

DC Voltage Gain: 200 V/V

DC Voltage Gain Accuracy: Better than 0.1% of full scale

Offset Voltage: Less than ±2 V

Output Noise: Less than 500 mV rms**

Slew Rate (10% to 90%): Greater than 750 V/µs

Settling Time: Less than 50 µs for a 0 to 2 kV step

Large Signal Bandwidth : DC to greater 60 kHz (3% Distortion)

Small Signal Bandwidth (-3dB): DC to greater than 100 kHz

Dimensions: 266 mm H x 482 mm W 655 mm D

Weight: 24,9 Kg
