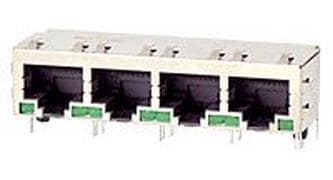

TRP Connector 5-6610000-1 Magnetic Jack RJ45 Connector
Manufacturer: TRP Connector Model: 5-6610000-1 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Color: Black
Gender: Jack (Female)
Shielding: Shielded, EMI Fingers
USOC Codes: RJ45
Application: 10/100 Base-T
Unit Weight: 32.445 g
REACH - SVHC: Details
Configuration: 1x2
Tab Direction: Tab Up
Mounting Angle: Right Angle
Mounting Style: Through Hole
Contact Plating: Gold
LED L / R Color: Green / Yellow
Number of Ports: 2 Port
Contact Material: Phosphor Bronze
Termination Style: Solder
Flammability Rating: UL 94 V-0
Number of Positions: 8 Position
Performance Category: Cat 5
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: 0 C
Number of Positions / Contacts per Port: 8P8C
