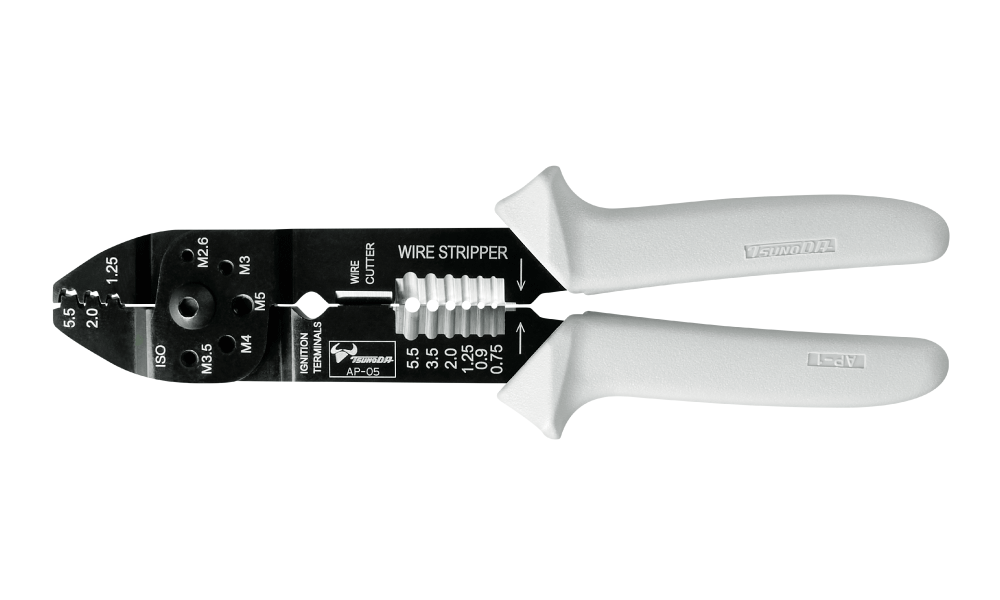

Tsunoda AP-05 Electric Multi-purpose Pliers (Faston)

  • Manufacturer: Tsunoda
    Model: AP-05
    Origin: Thailand
    Guarantee: 12 month
    • Request a Quotation Request a Quotation
  • Contact
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

Whole length (mm): 223
Head width (mm): 39
Tip thickness (mm): 4
Jaw thickness (mm): 15
Handle width (mm): 53
Weight (g): 285
Terminals and sizes: Faston Terminals(1.25/2.0/5.5sq)(AWG 16/14/10)
Cutting capacity: Strand copper wire 5.5㎟(AWG 10) / Copper φ2.0mm(AWG 14)/ Soft ironφ1.2mm(AWG 17)
Material: Alloy steel
Head hardness [HRC]: 49~55
Handle cover: Elastomeric molded resin grips
