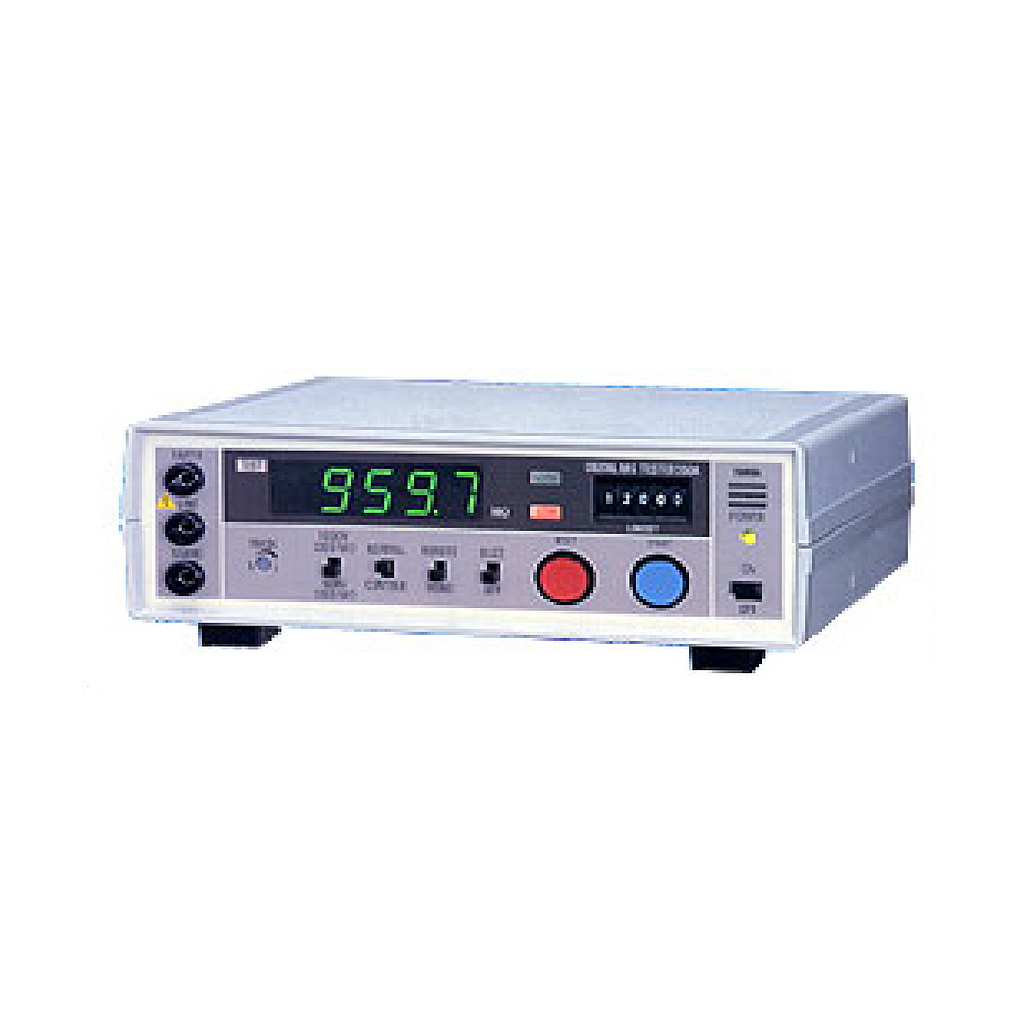

Tsuruga 356A insulation Tester (DC 1kV)

  • Manufacturer: TSURUGA
    Model: 356A
    • Request a Quotation Request a Quotation
  • Contact
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Model: 356A
Manufacturer: Tsuruga
Warranty: 12 months
Origin: Japan

Model & Output    356A , Low alarm
Measurement ranges    500V DC, 2000MΩ or 1000V DC , 2000MΩ
Rated measurement current    1 mA
Judgment system    Low limit with digital comparator
Adjustable range    Low limit 0-1999MΩ
Judgment condition    Display value > Low limit value : Good
Sampling    10 times/sec.
Response (Indication)    approx. 0.2 sec.
Mask time    0.1 - 10sec.
Power supply    100 / 200V AC, 50/60HZ
Weight    Approx. 1 kg
Dimensions    206 (W) x 81 (H) x 179 (D) mm
Accessories    Power fuse(1), Power cord(1)
