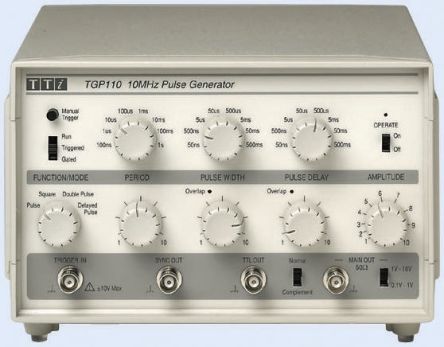

TTI TGP110 Pulse generator (10MHz)
Manufacturer: TTI Model: TGP110 Origin: United Kingdom - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
● 0.1Hz to 10MHz frequency range
● 50ns minimum pulse width; fully variable pulse delay
● Squarewave, double pulse and delayed pulse modes
● Free-run, gated and triggered modes
● 50 output, variable 0.1V to 10V; TTL and sync outputs
Power: 230V or 115V AC nominal 50/60Hz, adjustable internally;
operating range ±14% of nominal; 20VA max.
Size: 140 x 220 x 230mm (HxWxD)
Weight: 1.6kg (3.5lb)
Operating Range: + 5°C to 40°C, 20-80% RH.
Storage Range: - 40°C to 70°C
Safety: Complies with EN61010-1.
EMC: Complies with EN55081-1 and EN50082-1.
