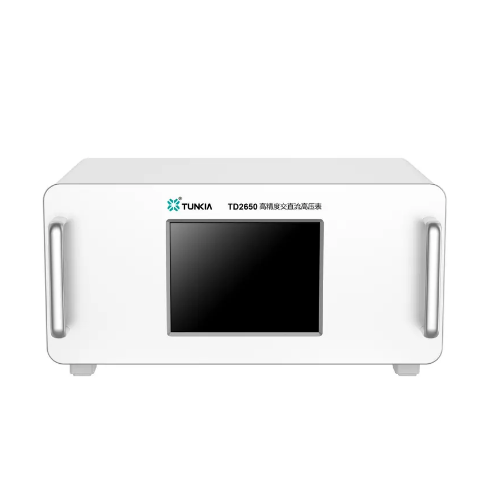

Tunkia TD2650 Precision AC/DC High Voltage Meter (Class 0.02, 50 kV DC, 5 kV AC)
Manufacturer: Tunkia Model: TD2650 P/N: TD2650-200-50kV-5kV - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
- DCV Measurement:
Range (kV): 5、10、20、50
Accuracy ±(ppm of reading + ppm of range): -
Temperature Coefficient (±ppm/K): -
Measurement range :(10% ~ 100%)*range, 6 digits display,
Manual or automatic range switch
- ACV Measurement:
Range (kV): 2、5
Accuracy ±(ppm of reading + ppm of range): 120 + 80
Temperature Coefficient (±ppm/K): < 15
Measurement range :(10% ~ 100%)*RG, 6 digits display, manual/automatic range switch
Frequency: 45.000 0 Hz ~ 65.000 0 Hz, uncertainty: 0.01 Hz
Max. voltage 25 kV is customable
- General Specifications:
Power supply: AC (220 ± 22) V，(50 ± 2) Hz
Temperature: Working temperature：0℃~45℃；Storage temperature：-20℃~70℃
Humidity: Working humidity：< 80% @ 30℃，< 70% @ 40℃，< 40% @ 50℃; Storage humidity：(20%~80%) R•H，non-condensing
Interface: RS232 interface
